ATOM FlashCut
Flex S Series
The ATOM CNC Digital Knife Cutting Table, FlashCut FLEX S Series, is equipped with a static working surface and represents the optimal digital knife cutting solution for all the traditional gasket materials.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-FLEX-3015-S-v2.png)
![](https://mfgsup.com/wp-content/uploads/2023/11/atom-flex-video-overlay-v2.jpg)
ATOM FlashCut ‘S’ Line Revolutionizes the Gasket Cutting Industry
Increases Yields
- Better yield increases profit and reduces waste
- Automatic nesting through integrated software – nest shapes within shapes
- Centers, remnants and wads do not need to be stored
- Material does not have to be blocked or stripped
- Parts can be placed closer together due to no ejection in cutting die or gang die
Eliminates Cutting Dies
- No waiting for dies to be built
- No dies needed for new business
- No dies needed for design change or samples
- No dies to be stored or repaired
Decreases Labor Costs
- Eliminate hand cutting – creates simple flanges @ user interface
- Eliminate additional steps such as blocking or stripping material
- When cutting full sheets, the operator is free to do other tasks
- Machine can run unattended
- One operator can run multiple machines at one time
More Versatile than Other Cutting Methods
- Unlike traditional die cutting, a knife cutting table does not require cutting dies – zero concavity
- Unlike water jet cutting, knife cut parts do not get wet & the cut quality is better on most materials
- Unlike laser cutting, a knife table requires no gases and does not produce odor or toxic fumes
Range - Models
![](https://mfgsup.com/wp-content/uploads/2023/11/L12.png)
Flex L12
Working Area (MM)
1200x1000
Max Absorption (KW)
1 Pump / 2 Pump
9,8
Description
Compact and easy to move. Ideal for sampling, small production batches for the maintenance of petrochemical facilities.
Flex L12 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/1515v2.jpg)
Flex 1515
Working Area (MM)
1550x1550
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / -
Description
Compact and powerful. Designed for those who want to get the best performance with the minimum amount of space.
Flex 1515 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/3015v2.jpg)
Flex 3015
Working Area (MM)
3050x1550
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / 23,86
Description
The most classic and best-selling version. The best size for most applications.
Flex 3015 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/3015v3.jpg)
Flex 3020
Working Area (MM)
3050x2050
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / 23,86
Description
Wider model for specific applications. The solution designed for the new material sizes.
Flex 3020 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/3015v2.jpg)
Flex 3026
Working Area (MM)
3050x2600
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / 23,86
Description
Ideal for cutting materials of significant sizes. Combined with on-line or off-line scanning systems it is ideal for full hides.
Flex 3026 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/3015v3.jpg)
Flex 4015
Working Area (MM)
4050x1550
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / 23,86
Description
Greater length to optimize the cutting of 2-meter sheets or to add a second cutting head.
Flex 4015 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/3015v2.jpg)
Flex 4020
Working Area (MM)
4050x2050
Max Absorption (KW)
1 Pump / 2 Pump
13,46 / 23,86
Description
Ideal system for processing bovine leather and splits, particularly in the furniture sector.
Flex 4020 Floorplan
![](https://mfgsup.com/wp-content/uploads/2023/11/6115v2.jpg)
Flex 6115
Working Area (MM)
6100x1550
Max Absorption (KW)
1 Pump / 2 Pump
- /23,86
Description
The maximum useful area of this range. Ideal solution for double cutting heads.
Flex 6115 Floorplan
FlashCut FLEX L12
The ATOM FlashCut FLEX L12, is a compact, versatile, high-performance digital knife cutting table
The ATOM FlashCut FLEX L12 is a compact, versatile, high-performance digital knife cutting table that share’s the same precision mechanical engineering, robust construction and state-of-the-art electronics as all the traditional FLEX Series utilized in the industrial sectors……….distinctive marks synonymous with the ATOM brand name worldwide.
Technical Spefications
- Working Area : 1200mm x 1000mm
- Process Materials up to 25mm Thick
- Standard 5-Tool Cutting Head + Tooling
- Powerful Partitioned & Adjustable Vacuum System
- High-Brightness Overhead Projection System
- Advanced Nesting Software
Modular Heads
![](https://mfgsup.com/wp-content/uploads/2023/06/5-Tool-Cutting-Head-FLEX-Series.jpg)
5-Tool Head
The 5-tool cutting head increases the overall versatility of the ATOM Flashcut and is one of the key factor of its success - the ability to total cut, score cut (partial depth cut) & kiss cut with one module, two auxiliary stations that can be equipped with rotating punches for precise small diameter holes, a creaser wheel or kiss cutting knife, a 4th station that includes a marking pen to apply part #’s and trademarks and a 5th non-rotating punch station that is used on light-weight materials. With this versatile head, the Flashcut now becomes a multi-functional production system for a variety of market sectors.
![](https://mfgsup.com/wp-content/uploads/2023/06/7-Tool-Cutting-Head-FLEX-Series.jpg)
7-Tool Head
The 7-Tool head offers the same combination as the 5-Tool head yet adds two additional rotating punching-drilling stations for increased flexibility. The pneumatically controlled belt-driven punch stations are primarily used for perforating leather, or for punching small diameter holes in gaskets & textile materials. Four independent punch tools on a single head allows for different hole sizes to be produced on the same job. To accommodate different applications, punches are available in sizes ranging from 0.5mm to 8mm & are made from tungsten carbide or high-speed steel (HSS).
![](https://mfgsup.com/wp-content/uploads/2023/06/5-Tool-Cutting-Head-FLEX-Series.jpg)
5-Tool Head
The 5-tool cutting head increases the overall versatility of the ATOM Flashcut and is one of the key factor of its success - the ability to total cut, score cut (partial depth cut) & kiss cut with one module, two auxiliary stations that can be equipped with rotating punches for precise small diameter holes, a creaser wheel or kiss cutting knife, a 4th station that includes a marking pen to apply part #’s and trademarks and a 5th non-rotating punch station that is used on light-weight materials. With this versatile head, the Flashcut now becomes a multi-functional production system for a variety of market sectors.
![](https://mfgsup.com/wp-content/uploads/2023/06/7-Tool-Cutting-Head-FLEX-Series.jpg)
7-Tool Head
The 7-Tool head offers the same combination as the 5-Tool head yet adds two additional rotating punching-drilling stations for increased flexibility. The pneumatically controlled belt-driven punch stations are primarily used for perforating leather, or for punching small diameter holes in gaskets & textile materials. Four independent punch tools on a single head allows for different hole sizes to be produced on the same job. To accommodate different applications, punches are available in sizes ranging from 0.5mm to 8mm & are made from tungsten carbide or high-speed steel (HSS).
Tooling Combinations
![](https://mfgsup.com/wp-content/uploads/2023/06/14-20mm-Punch-Holder-v2.jpg)
Side auxiliary tools can include rotating punches/drilling stations, kiss cut tool, creaser wheel for carton stock or thin plastics, or a 45° angle knife. Only available on the 5-Tool or 7-Tool modular head.
![](https://mfgsup.com/wp-content/uploads/2023/06/20mm-Kiss-Cut-Tool.jpg)
Side auxiliary tools can include rotating punches/drilling stations, kiss cut tool, creaser wheel for carton stock or thin plastics, or a 45° angle knife. Only available on the 5-Tool or 7-Tool modular head.
![](https://mfgsup.com/wp-content/uploads/2023/06/DKC-Drag-Knife-Chuck.jpg)
The Drag Knife Chuck (DKC) is ideal for total cutting rigid materials like thin compressed non-asbestos, laminates & plastics up to 6mm (1/4”) in thickness.
![](https://mfgsup.com/wp-content/uploads/2023/06/EOK-Electric-Oscillating-Knife-Chuck.jpg)
The Electric Oscillating Knife Chuck (EOK), is ideal for cutting softer, low-medium density materials like thin foams, soft rubber, pure graphite, leather, laminates, adhesives and similar products.
![](https://mfgsup.com/wp-content/uploads/2023/06/PMC-Pneumatic-Milling-Chuck.jpg)
The pneumatic milling chuck, or PMC, was designed for companies that want the flexibility for light-duty milling applications for rigid materials, primarily plastics (ABS, UHMW, PP, PE etc..), that are not capable of being cut with the traditional pneumatic oscillating knife chuck.
![](https://mfgsup.com/wp-content/uploads/2023/06/POC-Pneumatic-Oscillating-Knife-Chuck.jpg)
The Pneumatic Oscillating Chuck (POC), is an air driven tool engineered for cutting the most difficult materials but is also used for cutting thick, soft substrates as well.
![](https://mfgsup.com/wp-content/uploads/2023/06/PRC-Powered-Rotary-Cutting-Tool.jpg)
The Powered Rotary Chuck (PRC), is designed for cutting difficult fibrous materials, both uni-lateral & bi-lateral weaves, at a high rate of speed. The PRC is suitable for processing carbon fibers, Kevlar, fiber-glass, aramid and technical textiles & composites in general.
+PLUS|Flashcut Flex
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Easy-Partioned-Vacuum-System-360x600-1.jpg)
Partitioned Vacuum System
Powerful partitioned and adjustable vacuum system. Best material fixing during cutting with highest energy saving.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Performance-Reliability-360x600-1.jpg)
Performance and Reliability
Perfect quality and cutting speed. Precision mechanical engineering and state-of-the-art electronics.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Two-Cutting-Heads-360x600-1.jpg)
Two Cutting Heads
Two independent cutting heads to increase productivity.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Optimized-Nesting-360x600-1.jpg)
Optimized Nesting
Customized automatic nesting software. User friendly interface. Reduction of the process times and maximum material yield.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Static-Conveyorized-Feeding-Belt-360x600-1.jpg)
Static or Conveyorized Belt Cutting Surface
On the conveyorized models, the material feeding is carried out by the combination of the belt and two pincers mounted on the gantry.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Long-Life-Projectors-360x600-1.jpg)
Overhead
Projectors
Optimal clarity thanks to LED lamps which offer lower maintenance and a long life.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Flex-Acquisition-Feeding-System-360x600-1.jpg)
Acquisition
Systems
In-line and off-line Acquisition Systems optimize material yields and dramatically reduce the overall time for placing the shapes to be processed.
![](https://mfgsup.com/wp-content/uploads/2023/11/ATOM-Modular-Material-Handling-Solutions-360x600-1.jpg)
Modular Material
Handling Solutions

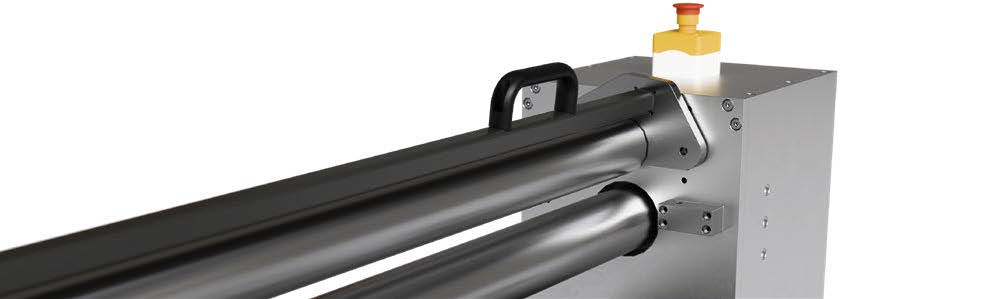

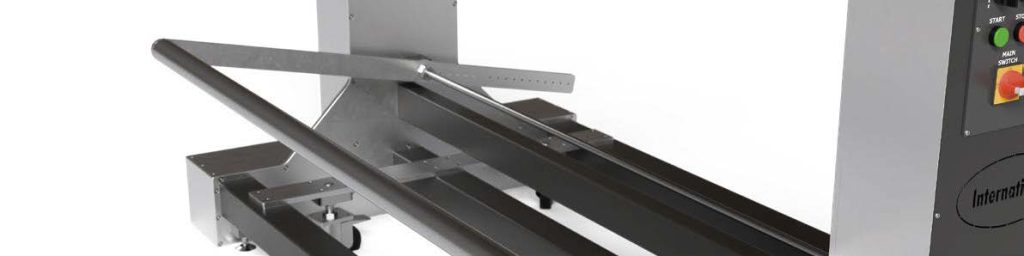

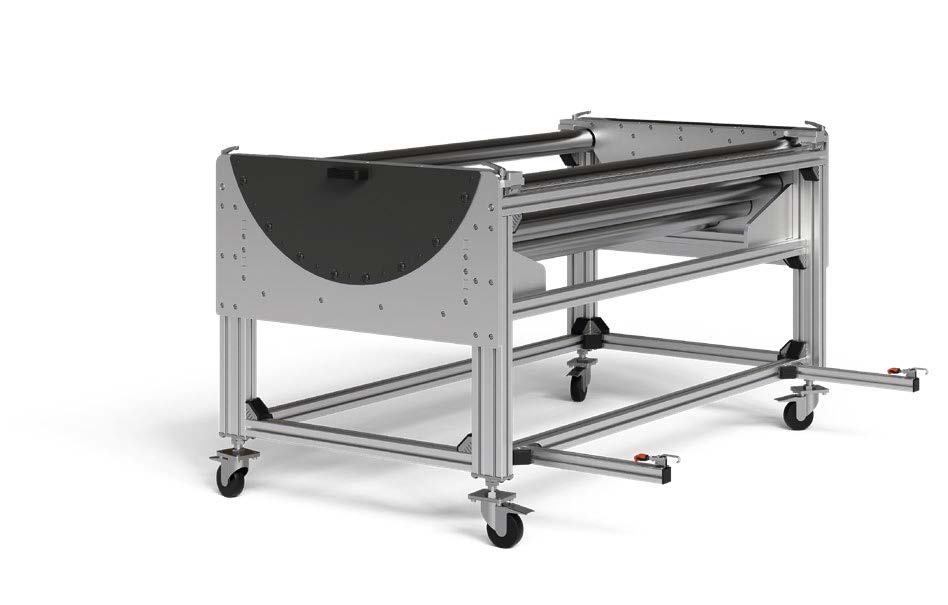

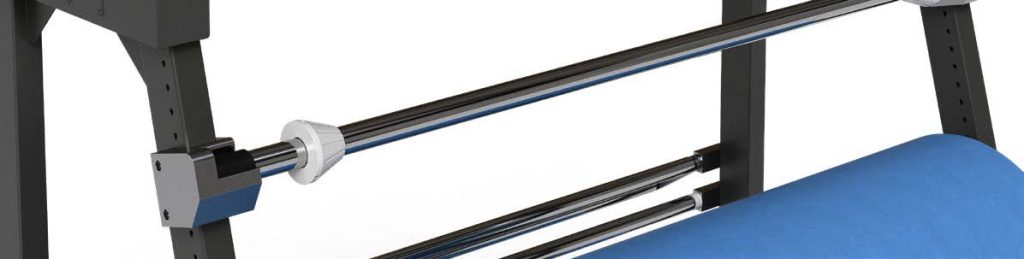

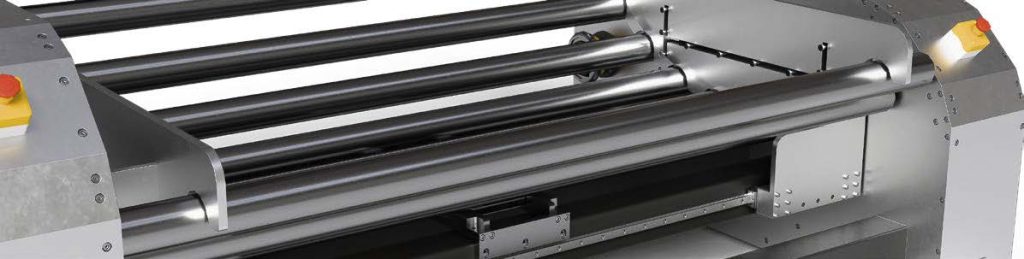

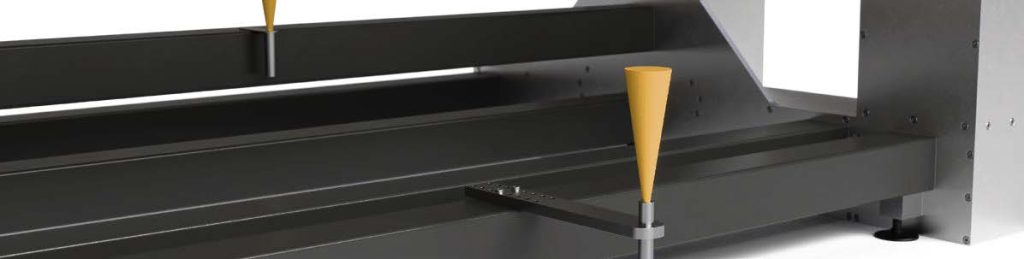

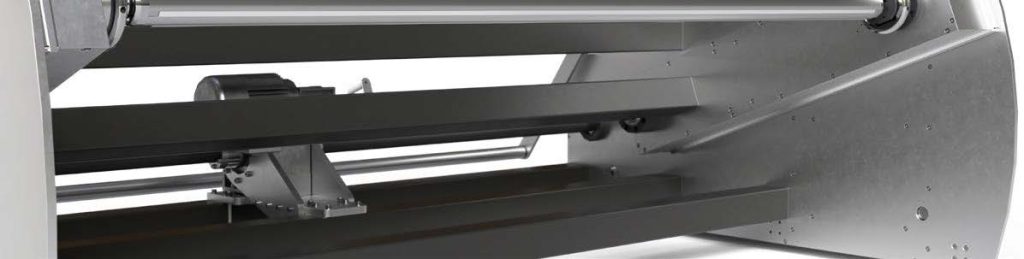

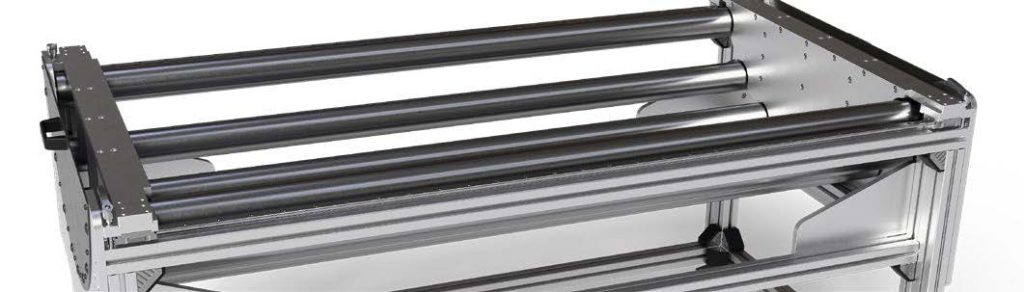

Standard & custom engineered material unwinds stands & winders, feeding and spreading machines, sheet-loaders, and in-line loading & off-loading tables.
