FEBA & IMESA

Multi-shaft log slitters

FEBA Srl Converting Machinery, a well-respected Milanese firm with over 40 years of experience, manufactures a complete range of fully automatic multi-shaft log slitters & double knife lathe slitting systems for high volume converting of adhesive and double sided adhesive tapes, foam tapes, PVC dielectric tapes, fiber reinforced tapes, polyester tapes, protection films, graphite, roofing membranes, textiles, laminates & similar products.

Imesa Srl Converting Machinery is the industry leader in the design, engineering, & manufacturing of automatic multi-shaft lathe slitters with a single or double blade configuration for high-production converting adhesive tapes, foam tapes, plastic films, non-woven, graphite, paper, fiber reinforced tapes, roofing materials and similar products from 200 to 600 mm in diameter with working widths from 1600 to 2200 mm.

FEBA Srl Converting Machinery, a well-respected Milanese firm with over 40 years of experience, manufactures a complete range of fully automatic multi-shaft log slitters & double knife lathe slitting systems for high volume converting of adhesive and double sided adhesive tapes, foam tapes, PVC dielectric tapes, fiber reinforced tapes, polyester tapes, protection films, graphite, roofing membranes, textiles, laminates & similar products.

Play Video

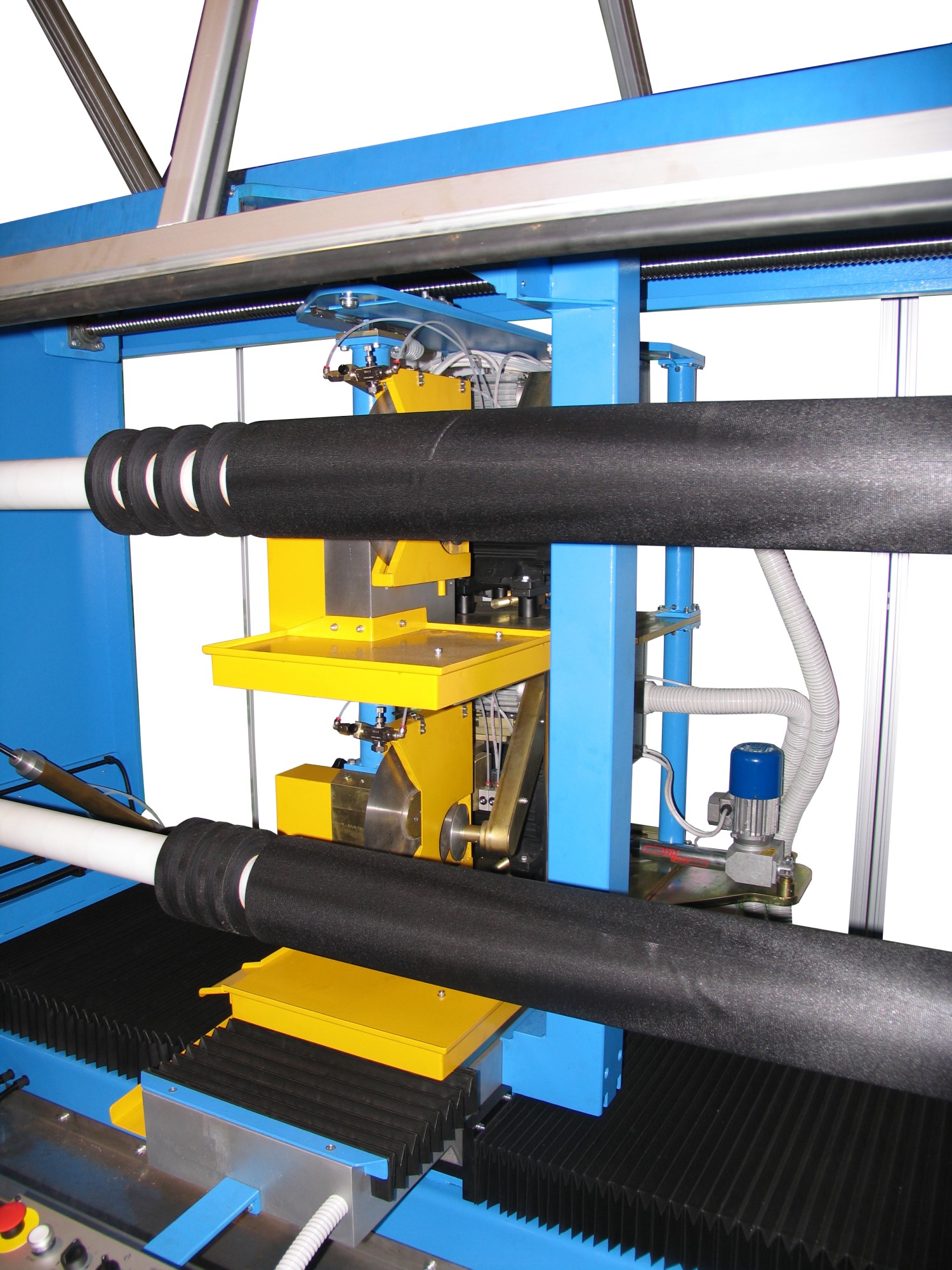

Available with two or four shafts using a single or twin blade configuration, the FEBA Multi-Shaft Automatic Log Slitters automatically center the blade in relation to the outside diameter of the roll being slit (via sonar), automatically positioning the blade (via laser), regardless of its diameter, or how much has been removed during the grinding process, which is critical for the correct usage of an automatic blade axis angle and a CNC system. The benefit of these standard features is the cutting blade will automatically increase its penetration speed into the shaft when its diameter decreases during sharpening. Now, the operator only has to load the log or logs (manually or semi-automatically via the “Easy Load” trolley), recall the desired program, and hit the start button. The FEBA multi-shaft lathe slitters will not only slash cycle times when loading different diameters of material, but also when the operator has to change blades.​

The range of log slitter’s IMESA is designed to optimize performance and sustained investment. The focus point of all the models, the Imesa cutting system allows the processing of several products without the need for a tool change, which makes it possible to optimize production times.

Play Video

The range of products varies from the entry-level product which guarantees excellent performance and productivity up to the cutting-edge technological innovation of the Log Slitter with Revolver system for materials loading / unloading without interrupting the cutting cycle, also available in the Full Automatic robotized. Diameters of the circular blades from 400 to 1200 mm and available widths from 1600 to 3200 mm and various optionals allow each cutting room to configure the log slitter according to their needs.
