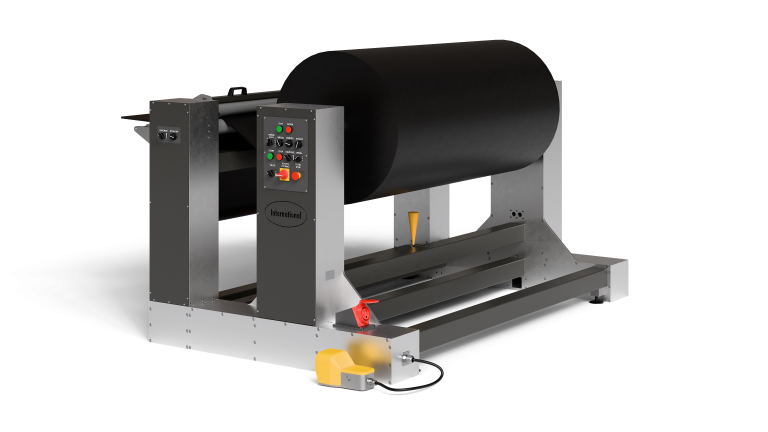

Unwinding & Winding Equipment

International manufactures a complete range of standard & custom engineered unwind & rewind stands designed for unwinding & winding a variety of industrial materials including foams & laminated foams, rubber, conveyor belting, cork, textiles & nonwovens, adhesive and non-adhesive tapes, laminates, composites, and similar products in varying dimensions and weights.

The International Unwinds and Winders are robust, complete, packaged solutions for a variety of converting processes, utilizing the highest quality components available, specified for your unique application, and configured for easy integration into your existing cutting or converting line.

Our unwinders & rewinders differ in terms of operation & size, can be configured for single or multiple rolls  for flexibility, and designed to maintain the proper tension during unwinding activities prior to the cutting or laminating phase of the converting process via dancer, sensor, or an integrated puller unit (nip feed) for heavier materials.

Un-rewinding machines

The machine is equipped with:
• Dancer: A sensor for monitoring material sag, controlling the drive shaft based on its data. Winding with sag allows for reduced stretching during material uptake.

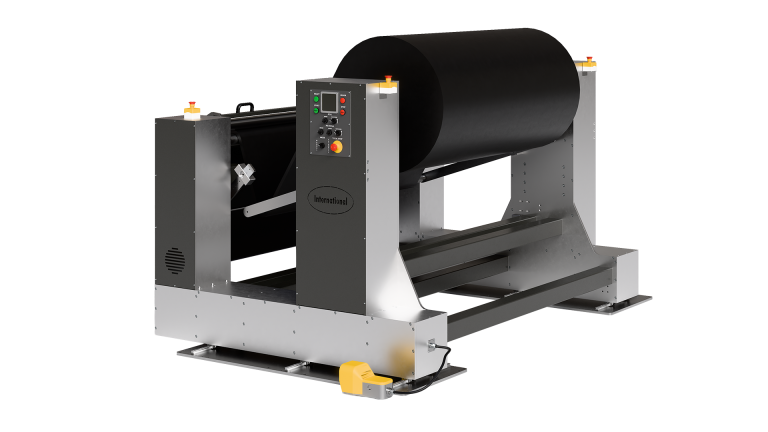

ICZ UNW SC


The machine is equipped with:
• Dancer: A sensor for monitoring material sag, facilitating reduced stretching during material uptake.
• Puller: Assists the drive during winding and creates tension between subsequent machines and the unwinder.
• Side Control: A device for aligning winding; it adjusts the position slightly if the material is unwound off-center.

The machine is equipped with:
• Puller: Assists the drive during winding and creates tension between subsequent machines and the unwinder.
• Sensor: Monitors material sag, adjusting winding speed accordingly.

The machine is equipped with:
• Dancer: A sensor for monitoring material sag, optimizing drive shaft
control for reduced stretching during material uptake.
• Puller: Assists the drive during winding and creates tension between subsequent machines and the unwinder.

The machine is equipped with:
• Dancer: For sag monitoring and optimized drive puller, ensuring reduced material stretching during uptake.
• Puller: Assists the drive during winding.
• Side Control: Ensures precise winding alignment, adjusting position if material is unwound off-center.

The machine is equipped with:
• Loader: A device for enhanced material handling, automatically raised by the machine for improved efficiency.
• Puller: Assists the drive during winding.

ICZ UNW CR2


The machine is equipped with:
• Dancer: For sag monitoring and optimized drive shaft control, minimizing material stretching during uptake.
• Puller: Assists the drive during winding.
• Side Control: For accurate winding alignment, making slight adjustments if material is unwound off-center.

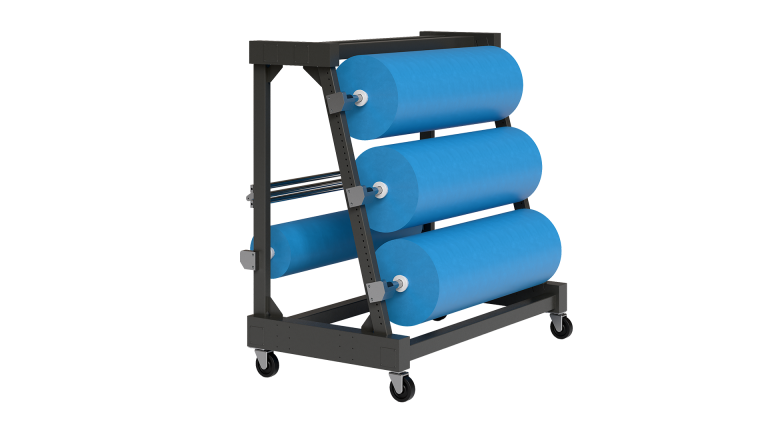

The machine is equipped with:
• Holder: A device for shaft
retention, with a maximum capacity of 4 units.

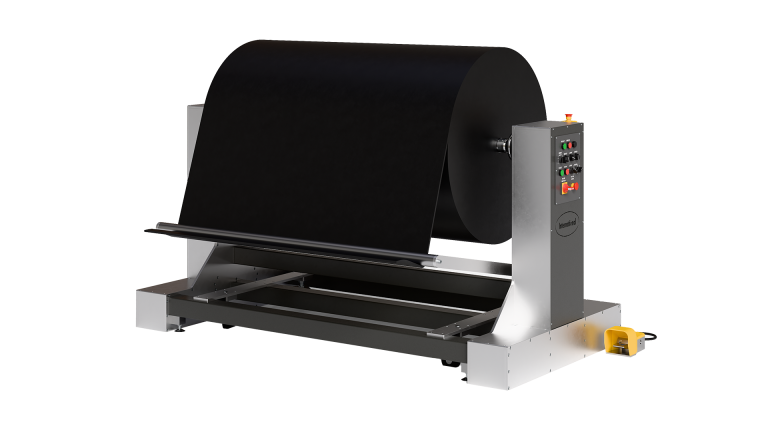

ICZ 1600 UNW E

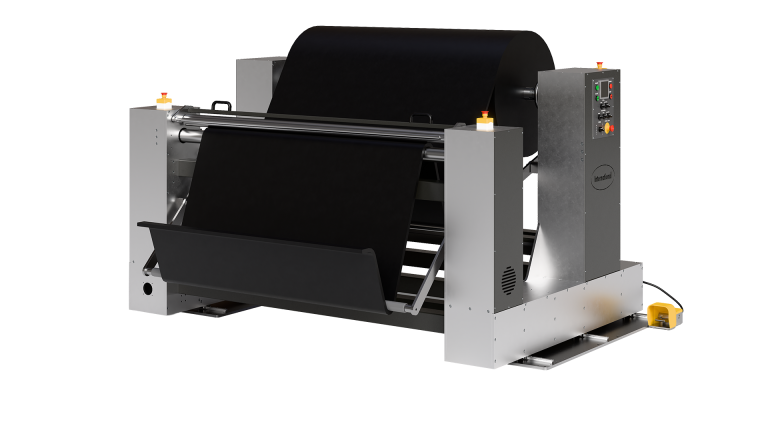

ICZ 1600 UNW R

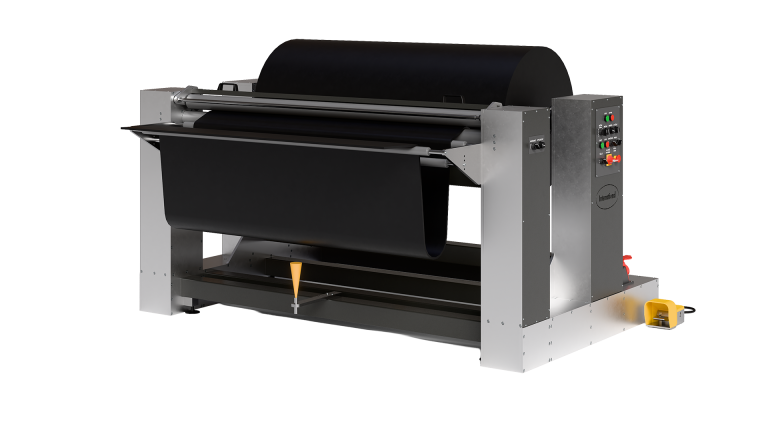

ICZ 1600 UNW S

ICZ 1600 UNW SC

ICZ 1600 UNW CR2/S

The width of the workspace for the material varies according to the type of the machine: 1300, 1600 and 2300 MM

Machine Types Processing Width Dancer Puller Sensor Type Side Control
Cradle
Shaft
Cradle + Shaft
ICZ 1600 UNW E
1600 mm
x
x
ICZ 1600 UNW R
1600 mm
x
x
x
ICZ 1600 UNW S
1600 mm
x
x
x
ICZ 1600 UNW SC
1600 mm
x
x
x
x
ICZ 1600 UNW CR1
1600 mm
x
x
x
Possible
ICZ 1600 UNW CR2/S
1600 mm
x
x
x
Possible
