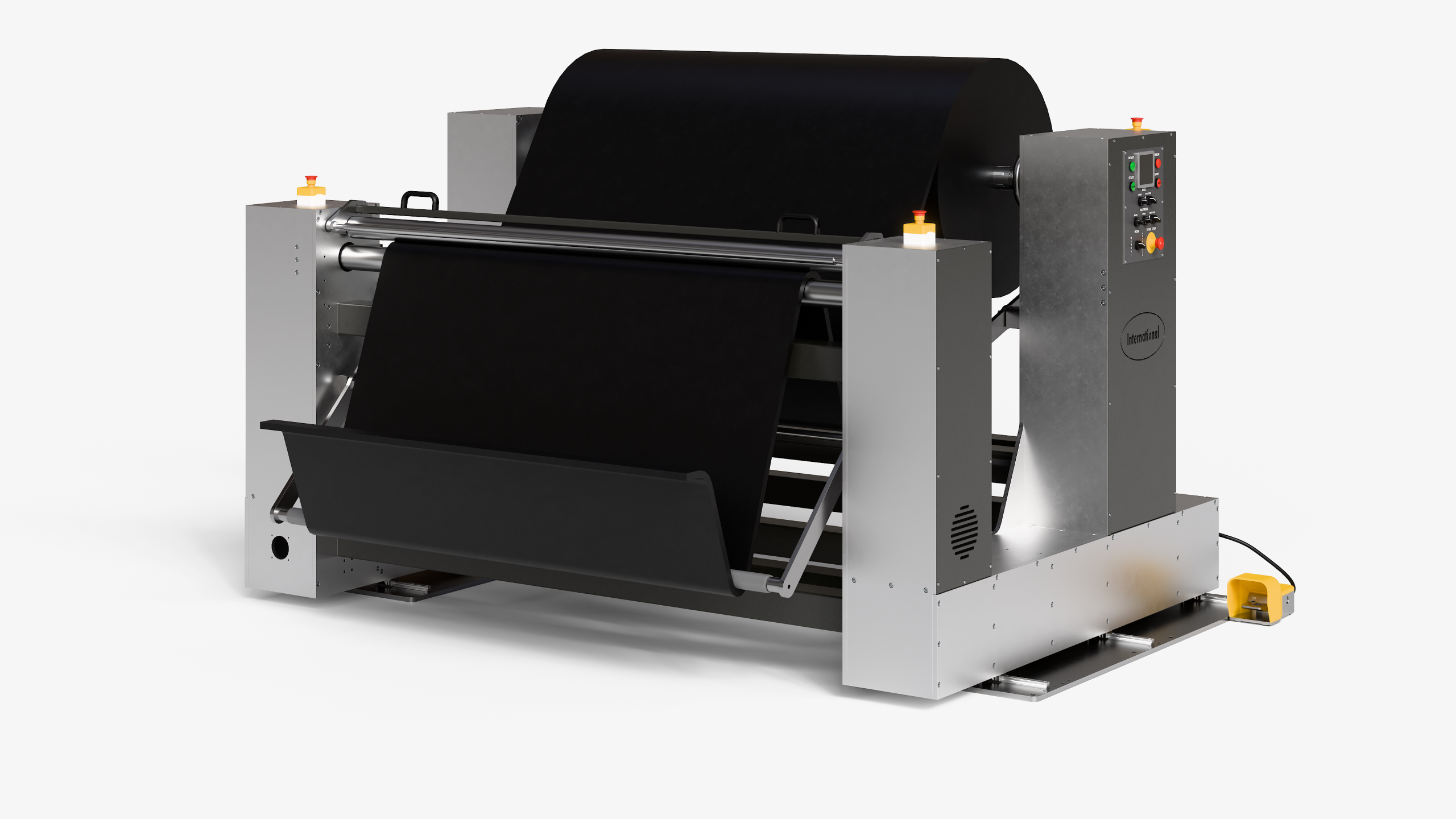

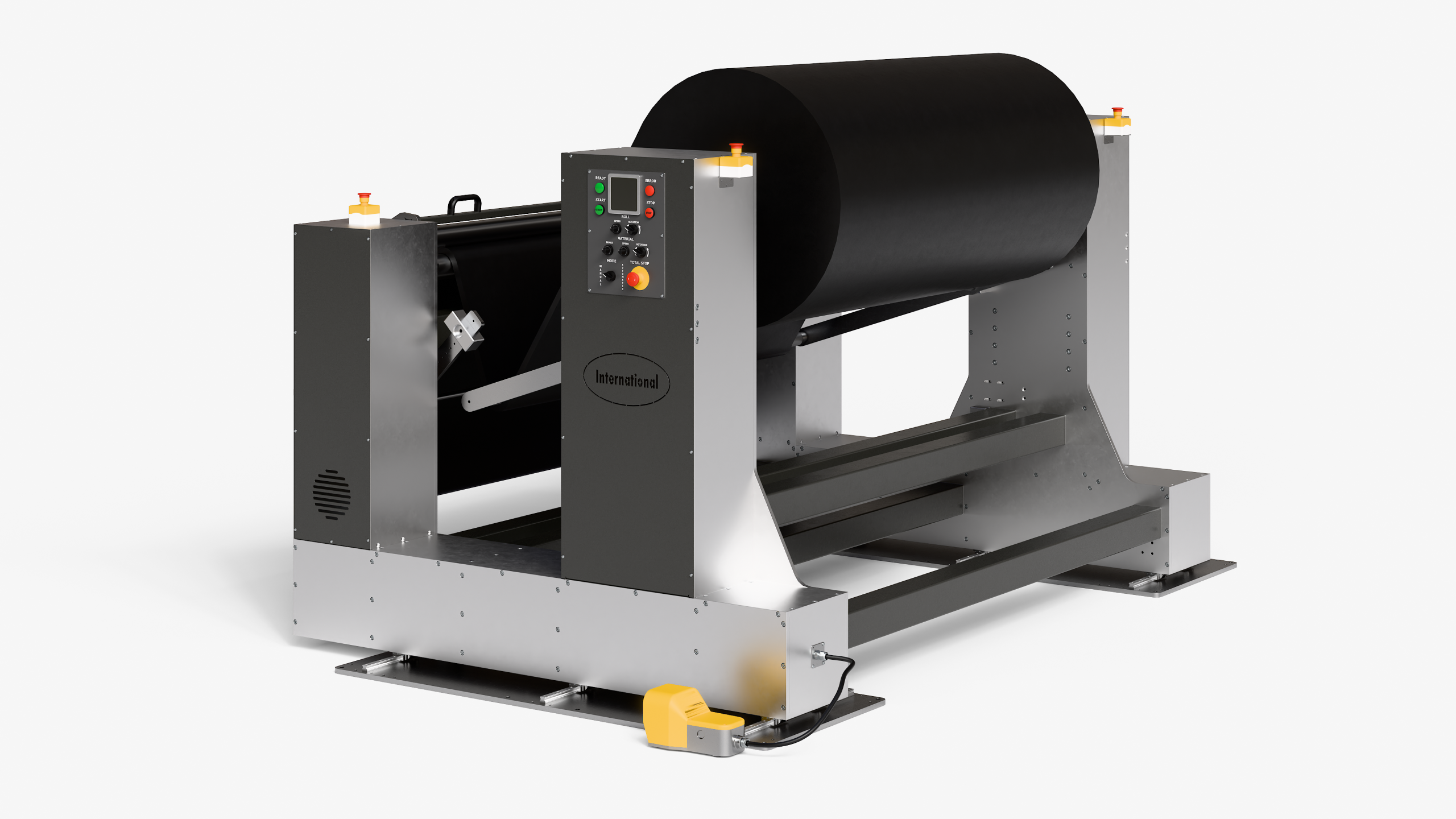

ICZ 1600-UNW R
MAXIMAL WORKING WIDTH 1600 MM
Our unwinding and rewinding machines are an essential part of our product portfolio, designed to ensure precise and controlled handling of materials. These machines facilitate efficient unwinding for processing.
Equipped with advanced tension and speed control systems, our machines guarantee optimal material tension and protection from damage throughout the process.
We offer unwinding and rewinding machines in the following standard working widths:
- 1300 mm
- 1600 mm
- 2300 mm
Custom configurations are available upon request.
Description of the Machine
Device for controlled material unwinding or rewinding.
Technical Specifications
- Application: Designed for precise and controlled unwinding of materials from rolls.
- Roll Parameters:
- Maximum width: 1600 mm
- Maximum diameter: 1200 mm
- Maximum weight: 500 kg
- Working Speed: 0–20 m/min
Key Features
- Motorized Unwinding System: Equipped with a motorized unit that ensures smooth and controlled unwinding, enabling seamless material feeding to the next processing stage without internal tension.
- Dancer: Automatically adjusts unwinding speed to maintain proper tension, preventing over-tension or slack.
This device delivers high-performance, tension-free material handling, making it a reliable solution for continuous production processes.
Equipment of the Machine

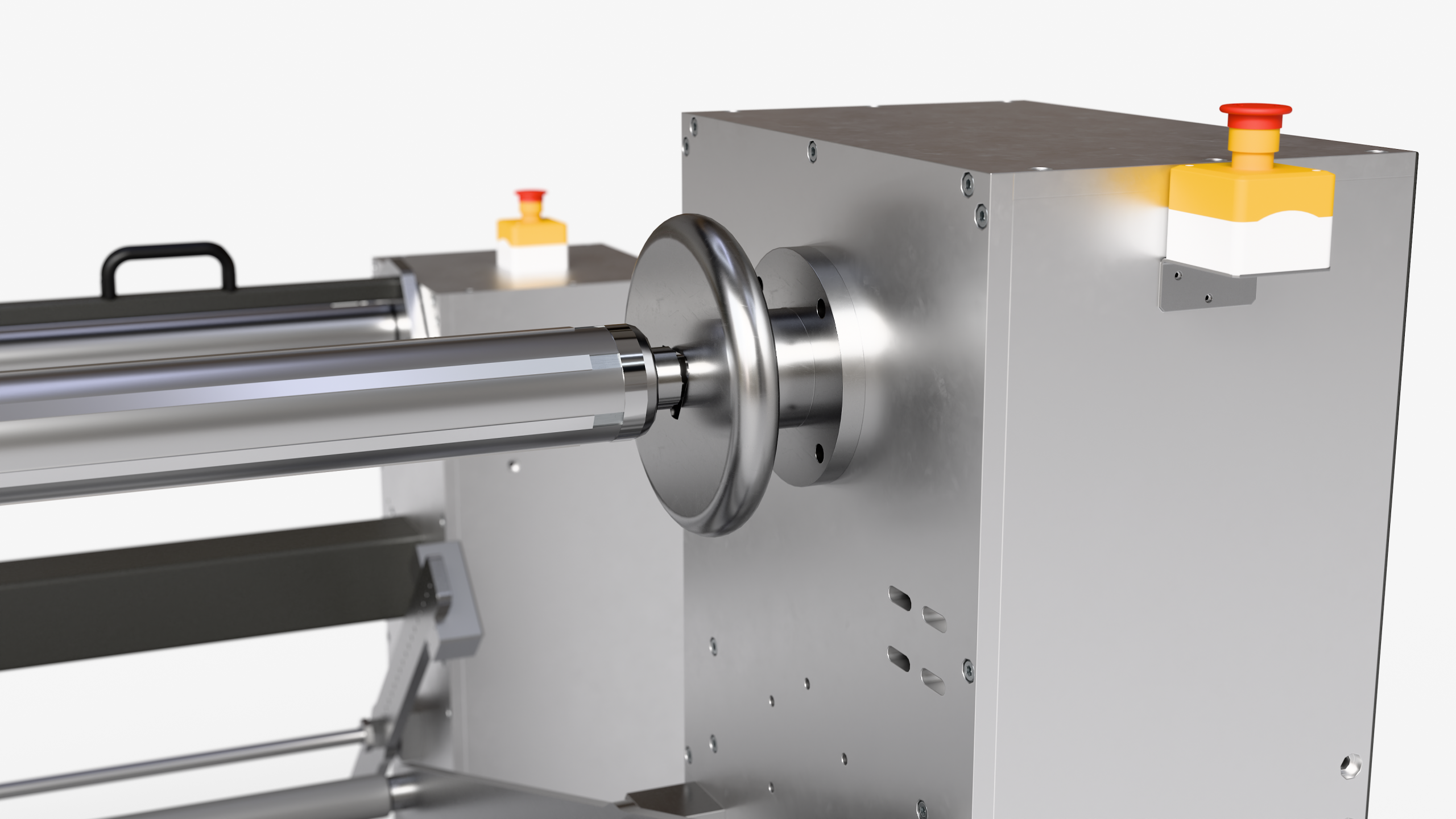

Shaft:
- Interchangeable shaft
- Quick-lock fastening system on both ends for secure and efficient shaft fixation.
- Shaft equipped with an alignment gauge to ensure precise material positioning.
Safety Chucks:
- Fastening by clamping chucks on both ends of the shaft.
- Clamping chucks feature V-shaped jaws for easy and accurate shaft positioning.

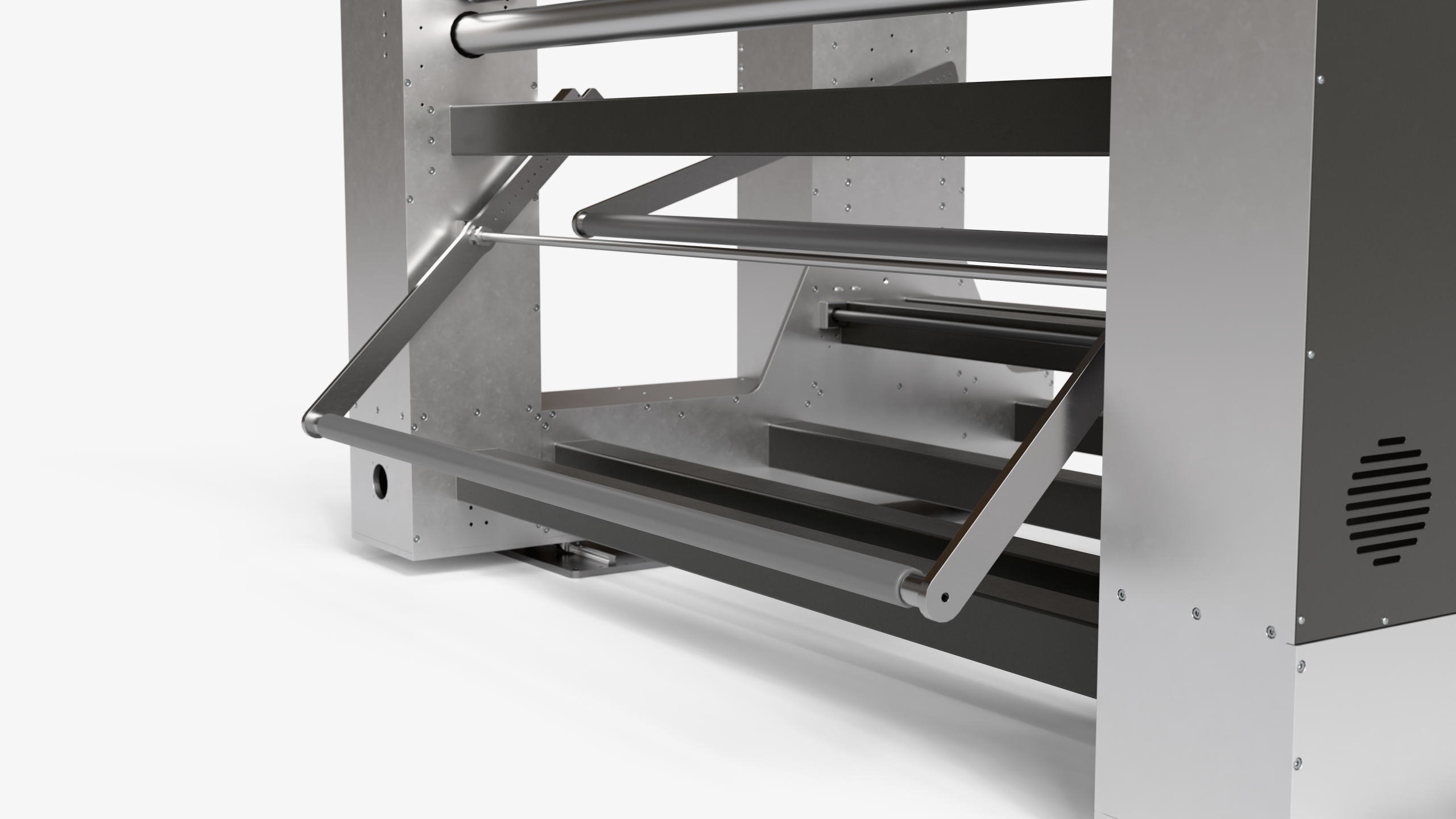

Dancer:
- A device that synchronizes the unwinding of the material with the speed of the machine that is receiving the material from the unwinder.
- If the loop is small, the unwinding accelerates to release more material.
- If the loop is large, the unwinding slows down to prevent excessive unwinding.

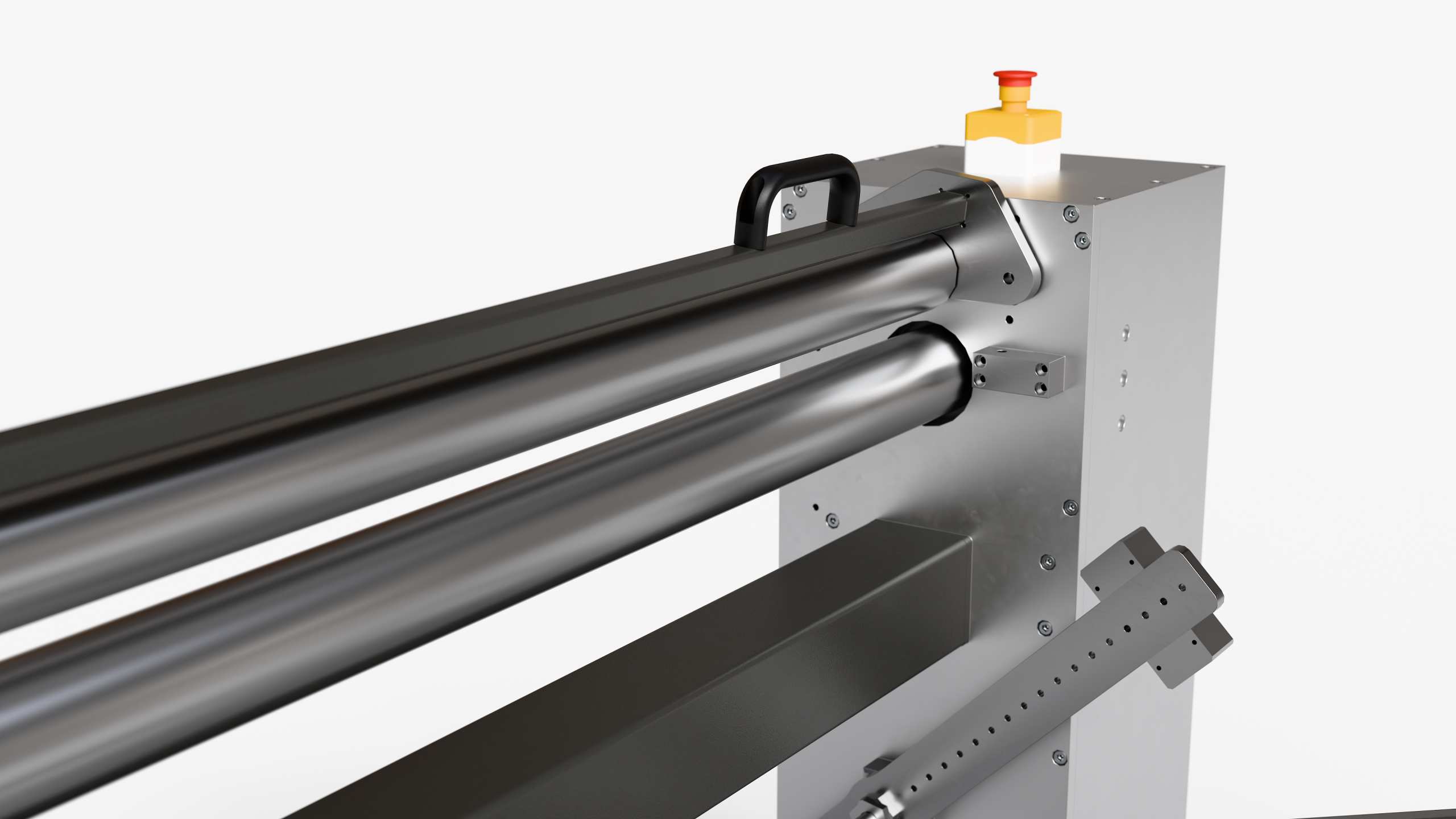

Feeding Unit:
- Device designed for feeding material into the machine.
- Motorized movement controlled from the control panel.
- Adjustable gap between rollers in the range of 0–55 mm.
- Composed of two metal rollers with a special non-slip surface.

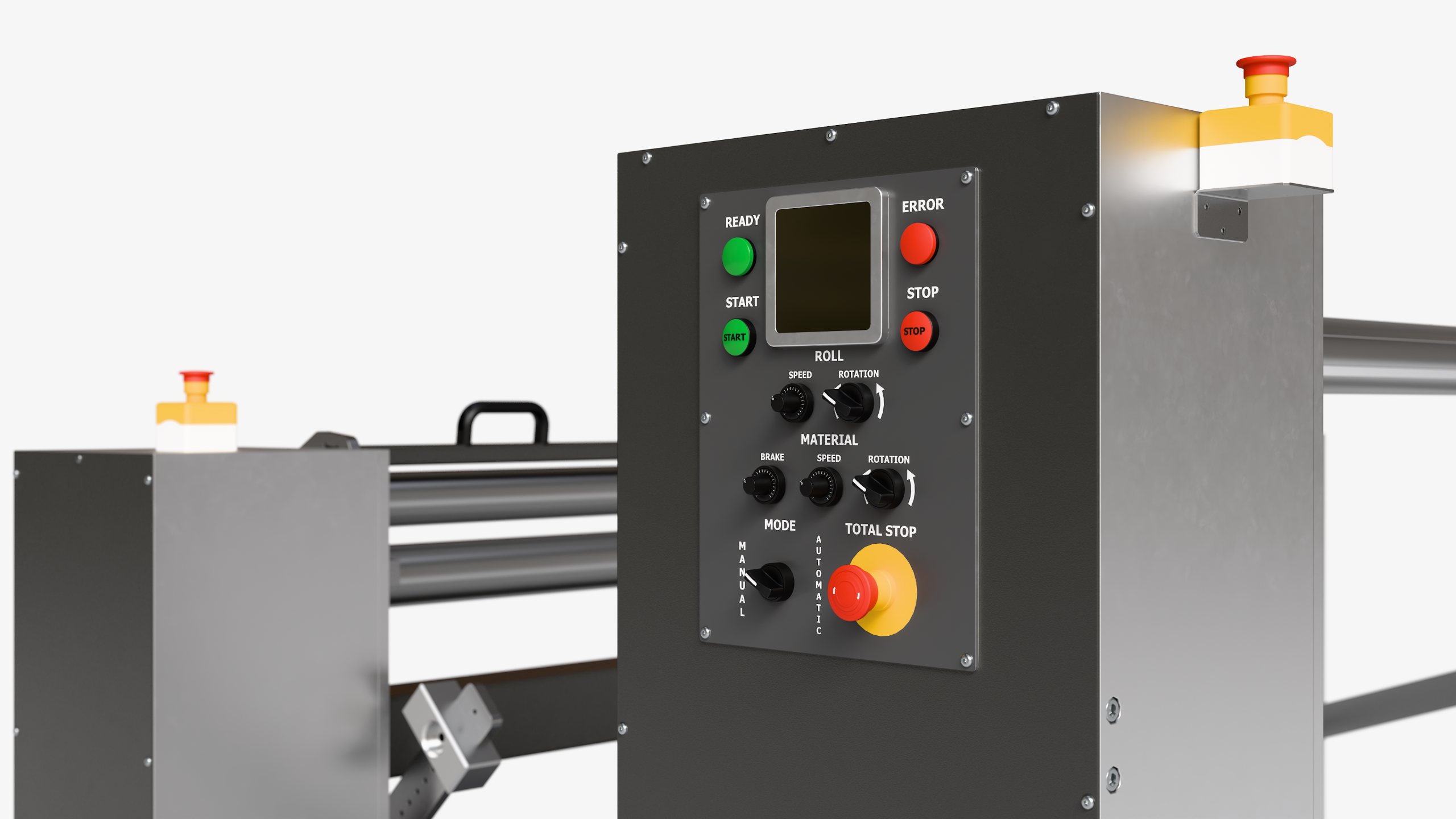

Control Panel:
- Machine operation via touch screen and several analog buttons.
- Automatic programs for material processing according to settings.
- Manual program for basic operations.
- Counting of processed meters and pieces.
Safety Features
- Protective covers
- Micro switches
- Safety elements designed for maximum prevention of hazardous situations during machine operation.
