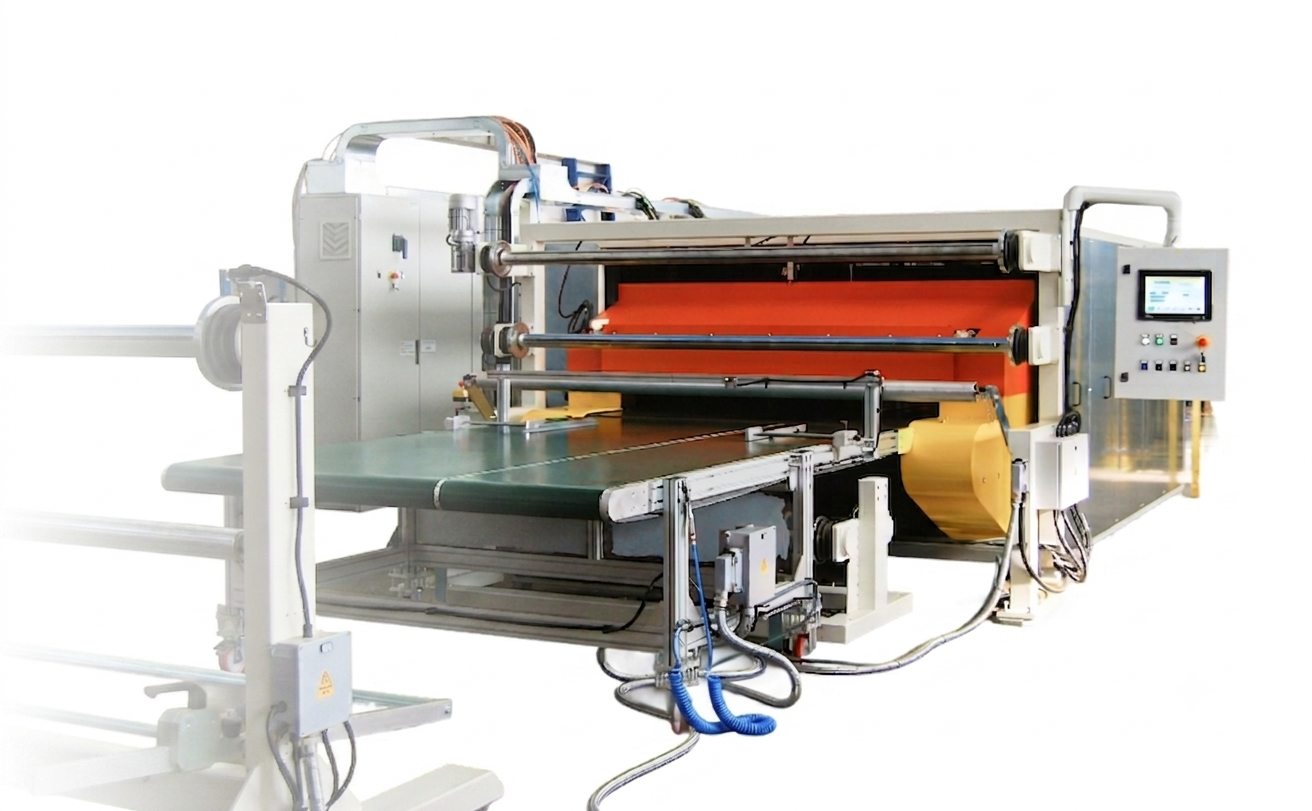

Imesa K-FB Flatbed Double Belt Laminating System
The K-FB Flatbed Double Belt Laminating System delivers uniform heat, controlled pressure, and repeatable bonding quality for PSA and thermo-activated films.
Built for Industrial Lamination
The K-FB is designed for demanding laminating processes involving self-adhesive pressure-sensitive films, thermo-activated films, technical substrates, composites, foams, felts, medical layers, and high-value materials.
Unlike traditional roller laminators that rely on one or two nip points, the K-FB uses two conveyor belts to support the material from below while applying soft, continuous pressure from above across an extended lamination area.

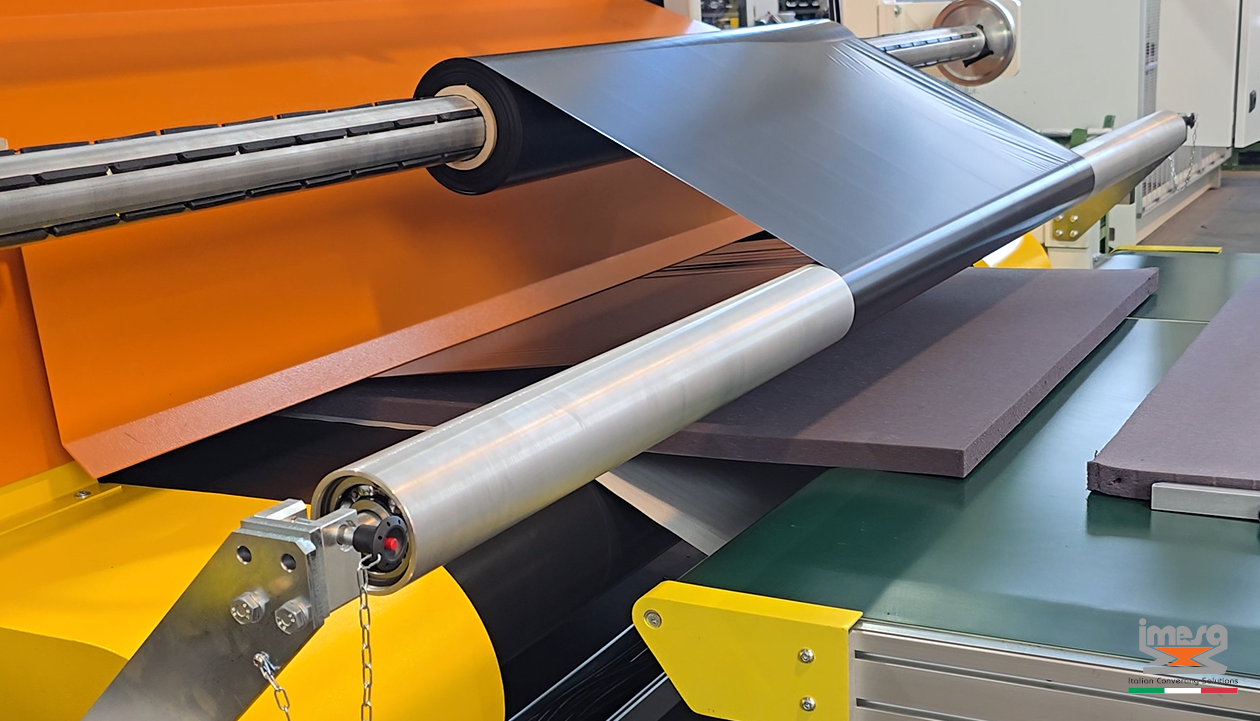

Key Advantages
UNIFORM HEAT CONTROL
Up to 32 independent heating zones distribute heat gradually and evenly across the working surface, reducing material stress and improving lamination consistency.
PLC-CONTROLLED ACCURACY
Gap, material thickness, belt speed, and operating temperature are managed directly from the PLC touchscreen for precise, repeatable production.
CONTINUOUS BELT PRESSURE
The double-belt structure applies controlled pressure over a long lamination zone, improving bonding quality for thin, thick, sensitive, or expensive materials.
OPTIONAL COOLING STABILIZATION
An optional cooling area with dedicated temperature zones helps stabilize applications by quickly reducing material temperature after lamination.
Technical Data
| Feature | Specification |
|---|---|
| Working width | 1600 mm |
| Heating zone length | 2000 mm |
| Cooling area length | 1000 mm |
| Heating zones | 8 standard, expandable up to 32 |
| Cooling zones | 8 |
| Working speed | 0–15 m/min / 0–50 ft/min |
| Working temperature | Up to 250°C / 480°F |
| Material thickness | Up to 100 mm |
| Optional thickness version | Up to 150 mm |
| GAP adjustment | Electronic, PLC controlled |

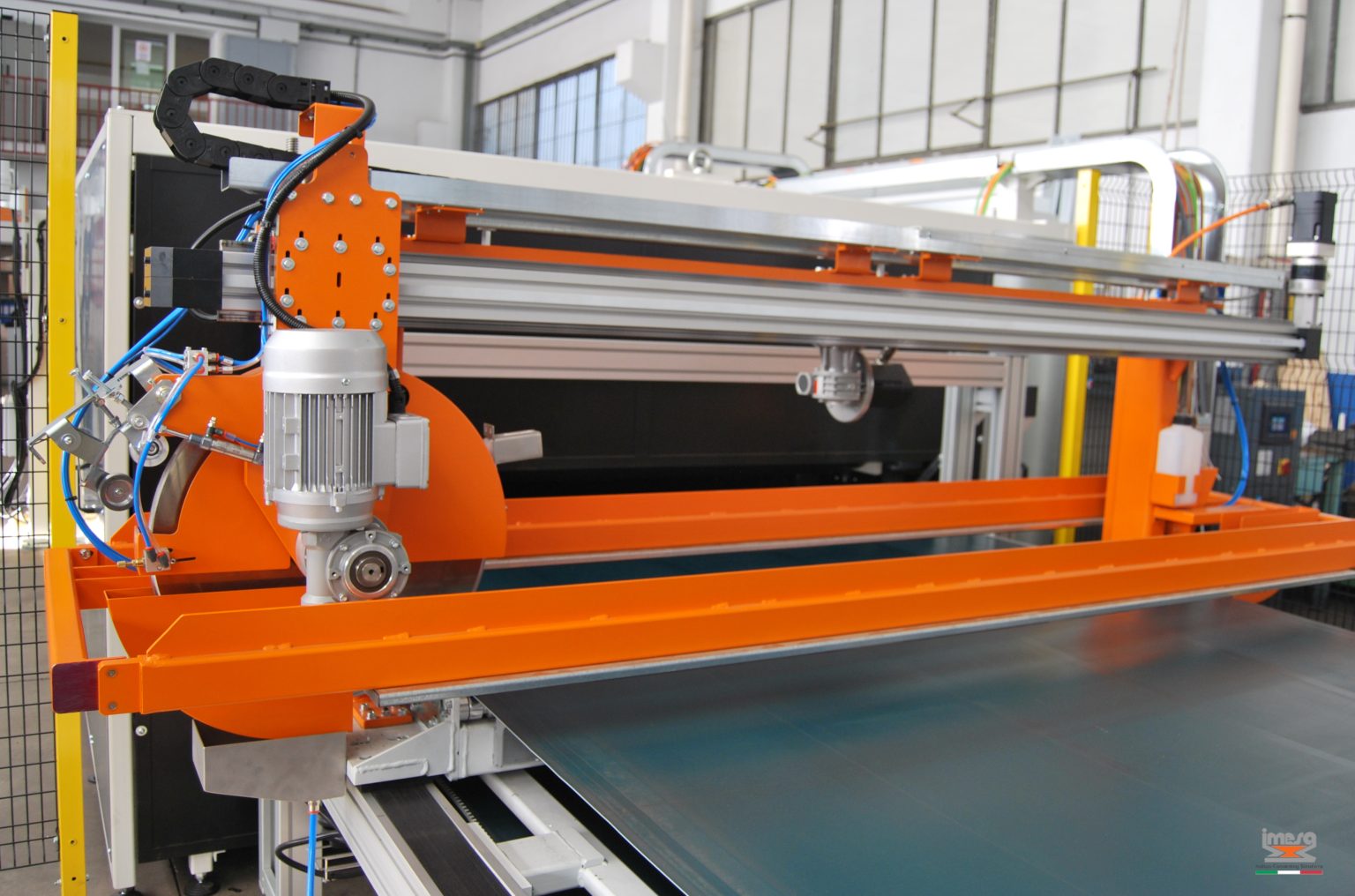

Versatile Applications & Advanced Configurations
The K-FB Flatbed Double Belt Laminating System is ideal for industries including building and insulation, aerospace, railway, automotive, renewable energy, medical, and technical films, offering precise lamination for foams, composites, lightweight materials, and sensitive multilayer products. The system can also be configured with advanced options such as flying cross-cut systems, roll change automation, integrated camera monitoring, cooling sections with chillers, and flexible roll-to-roll, sheet-to-sheet, or roll-to-sheet processing.

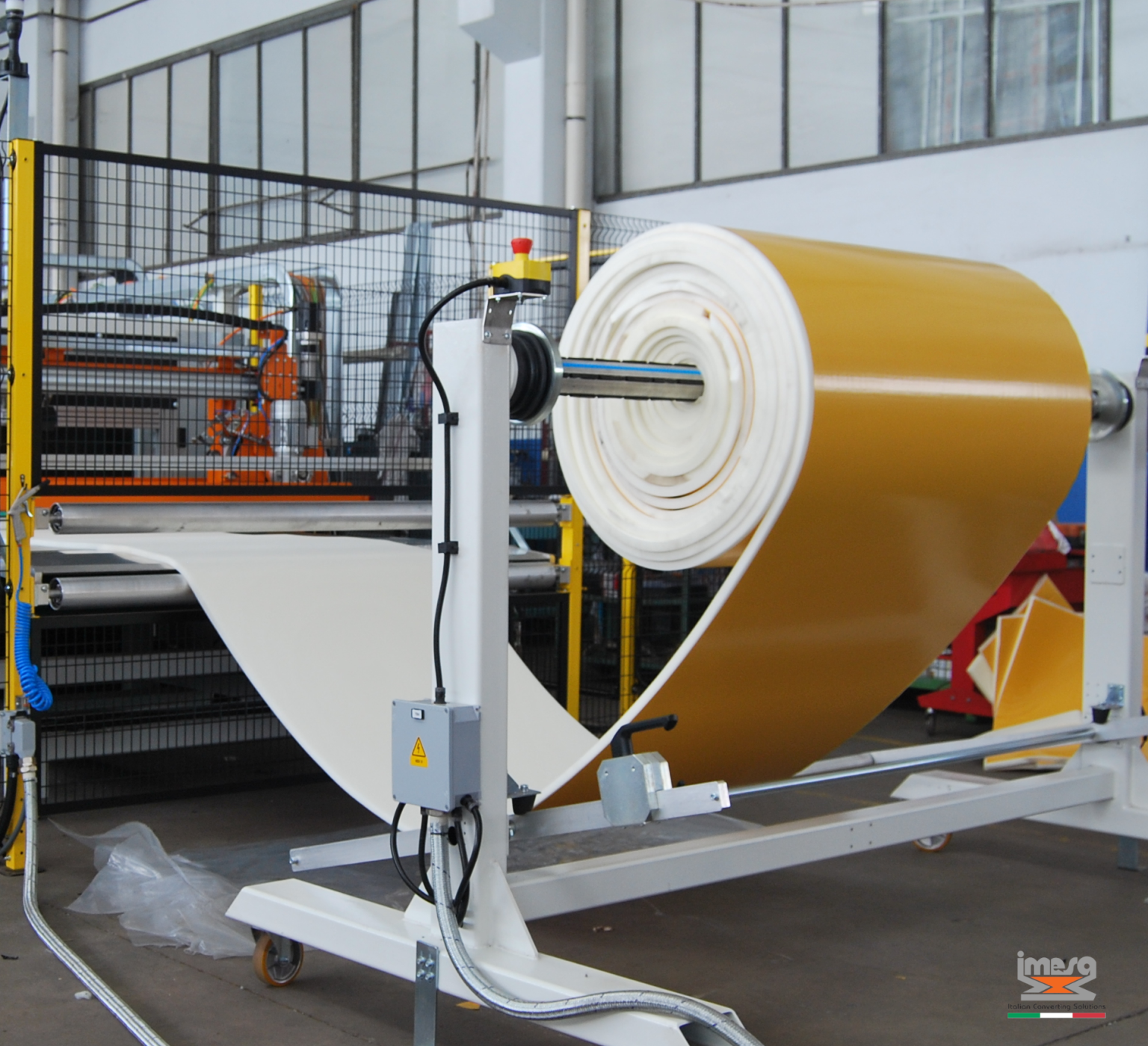

Why Choose K-FB
The K-FB is a strong choice when production requires high volume, high material value, strict thickness control, controlled thermal profiles, or stable bonding quality across large surfaces.
It offers European-level performance, flexible configurations, and competitive investment options, including basic configurations for customers entering double-belt lamination technology.
