ATOM FlashCut
FLEX PRO Series
The Pro line is Atom’s new expression of Cutting Systems to meet needs of gasket and composite fields
The new design features an innovative console, basement, and projector structure focused on maximum safety, enhanced ergonomics, and seamless integration, complemented by advanced ultrasonic protective devices for superior safety. With streamlined components that reduce reliance on mechanical and digital parts, the system ensures minimal maintenance while providing smooth and silent axis movement through cutting-edge motion technology. Magnetic linear motors equipped with absolute encoders deliver exceptional performance, precision, and high-profile quality, while the reinforced cutting beam structure offers durability and reliability, even when handling the toughest materials.
- Innovative console, basement, and projector design: Enhanced structure with a focus on maximum safety, improved ergonomics, and seamless integration.
- Ultrasonic protective devices: Advanced technology ensuring superior safety for both users and equipment.
- Streamlined components: Reduced reliance on mechanical and digital parts to minimize maintenance requirements and improve long-term reliability.
- Smooth and silent axis movement: Achieved through cutting-edge motion technology for quieter and more efficient operation.
- Magnetic linear motors with absolute encoders: Delivering unparalleled performance, precision, and exceptional profile quality to meet the highest standards.
- Reinforced cutting beam structure: Built to withstand rigorous use and challenging materials, ensuring durability and reliability over time.
The Pro line Cutting systems represent the highest technological expression in terms of:
- Performance: up to 120m/min Cutting speed >> due to the Magnetic Linear Motions
- Quality and precision: due to the motions and linear encoders
- Line and ergonomics: thanks to the new Design
- Robustness: New Beam and more weight basement for greater stability even at maximum force
POWER • PRECISION • DESIGN
| Topics | FlashCut | Flex | FlashCut | Flex PRO |
|---|---|---|
|
Max cutting speed
[m/min] |
60 |
120 (+ 100%) |
|
Max acceleration
[m/Sec2] |
6 |
12 (+ 100%) |
|
Ultrasonic safety guard |
Not available |
Included |
|
AxesMotion |
RotaryBrushless |
Linear |
|
Encoder type |
Rotary Incremental/absolute |
NEW Linear absolute |
|
Suitable Chuck |
Pneu/PRC/Fixed/Sonotrode |
Pneu/PRC/Fixed/Sonotrode |
|
Working Area
[mm] |
3050×1550 |
3050×1550 |
|
Weight
[Kg] |
1750 |
2160 (high performance proof) |
|
Sizes
[mm] |
4000x2120x1220 |
4000x2120x1220 |
Modular Heads
5-Tool Head
The 5-tool cutting head increases the overall versatility of the ATOM Flashcut and is one of the key factor of its success - the ability to total cut, score cut (partial depth cut) & kiss cut with one module, two auxiliary stations that can be equipped with rotating punches for precise small diameter holes, a creaser wheel or kiss cutting knife, a 4th station that includes a marking pen to apply part #’s and trademarks and a 5th non-rotating punch station that is used on light-weight materials. With this versatile head, the Flashcut now becomes a multi-functional production system for a variety of market sectors.
7-Tool Head
The 7-Tool head offers the same combination as the 5-Tool head yet adds two additional rotating punching-drilling stations for increased flexibility. The pneumatically controlled belt-driven punch stations are primarily used for perforating leather, or for punching small diameter holes in gaskets & textile materials. Four independent punch tools on a single head allows for different hole sizes to be produced on the same job. To accommodate different applications, punches are available in sizes ranging from 0.5mm to 8mm & are made from tungsten carbide or high-speed steel (HSS).
5-Tool Head
The 5-tool cutting head increases the overall versatility of the ATOM Flashcut and is one of the key factor of its success - the ability to total cut, score cut (partial depth cut) & kiss cut with one module, two auxiliary stations that can be equipped with rotating punches for precise small diameter holes, a creaser wheel or kiss cutting knife, a 4th station that includes a marking pen to apply part #’s and trademarks and a 5th non-rotating punch station that is used on light-weight materials. With this versatile head, the Flashcut now becomes a multi-functional production system for a variety of market sectors.
7-Tool Head
The 7-Tool head offers the same combination as the 5-Tool head yet adds two additional rotating punching-drilling stations for increased flexibility. The pneumatically controlled belt-driven punch stations are primarily used for perforating leather, or for punching small diameter holes in gaskets & textile materials. Four independent punch tools on a single head allows for different hole sizes to be produced on the same job. To accommodate different applications, punches are available in sizes ranging from 0.5mm to 8mm & are made from tungsten carbide or high-speed steel (HSS).
Tooling Combinations
Side auxiliary tools can include rotating punches/drilling stations, kiss cut tool, creaser wheel for carton stock or thin plastics, or a 45° angle knife. Only available on the 5-Tool or 7-Tool modular head.
Side auxiliary tools can include rotating punches/drilling stations, kiss cut tool, creaser wheel for carton stock or thin plastics, or a 45° angle knife. Only available on the 5-Tool or 7-Tool modular head.
The Drag Knife Chuck (DKC) is ideal for total cutting rigid materials like thin compressed non-asbestos, laminates & plastics up to 6mm (1/4”) in thickness.
The Electric Oscillating Knife Chuck (EOK), is ideal for cutting softer, low-medium density materials like thin foams, soft rubber, pure graphite, leather, laminates, adhesives and similar products.
The pneumatic milling chuck, or PMC, was designed for companies that want the flexibility for light-duty milling applications for rigid materials, primarily plastics (ABS, UHMW, PP, PE etc..), that are not capable of being cut with the traditional pneumatic oscillating knife chuck.
The Pneumatic Oscillating Chuck (POC), is an air driven tool engineered for cutting the most difficult materials but is also used for cutting thick, soft substrates as well.
The Powered Rotary Chuck (PRC), is designed for cutting difficult fibrous materials, both uni-lateral & bi-lateral weaves, at a high rate of speed. The PRC is suitable for processing carbon fibers, Kevlar, fiber-glass, aramid and technical textiles & composites in general.
+PLUS|Flashcut Flex
Partitioned Vacuum System
Powerful partitioned and adjustable vacuum system. Best material fixing during cutting with highest energy saving.
Performance and Reliability
Perfect quality and cutting speed. Precision mechanical engineering and state-of-the-art electronics.
Two Cutting Heads
Two independent cutting heads to increase productivity.
Optimized Nesting
Customized automatic nesting software. User friendly interface. Reduction of the process times and maximum material yield.
Static or Conveyorized Belt Cutting Surface
On the conveyorized models, the material feeding is carried out by the combination of the belt and two pincers mounted on the gantry.
Overhead
Projectors
Optimal clarity thanks to LED lamps which offer lower maintenance and a long life.
Acquisition
Systems
In-line and off-line Acquisition Systems optimize material yields and dramatically reduce the overall time for placing the shapes to be processed.
Modular Material
Handling Solutions

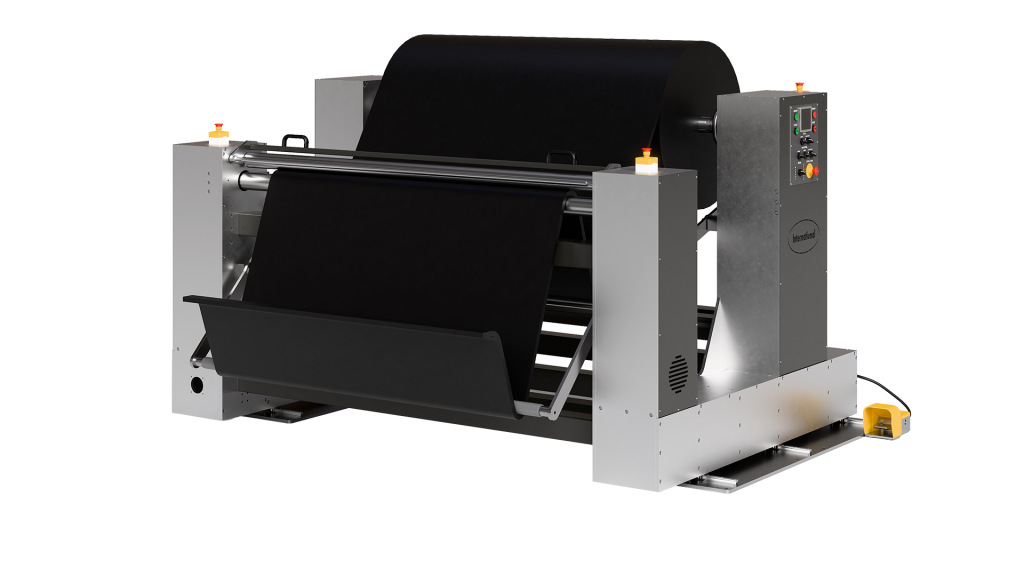

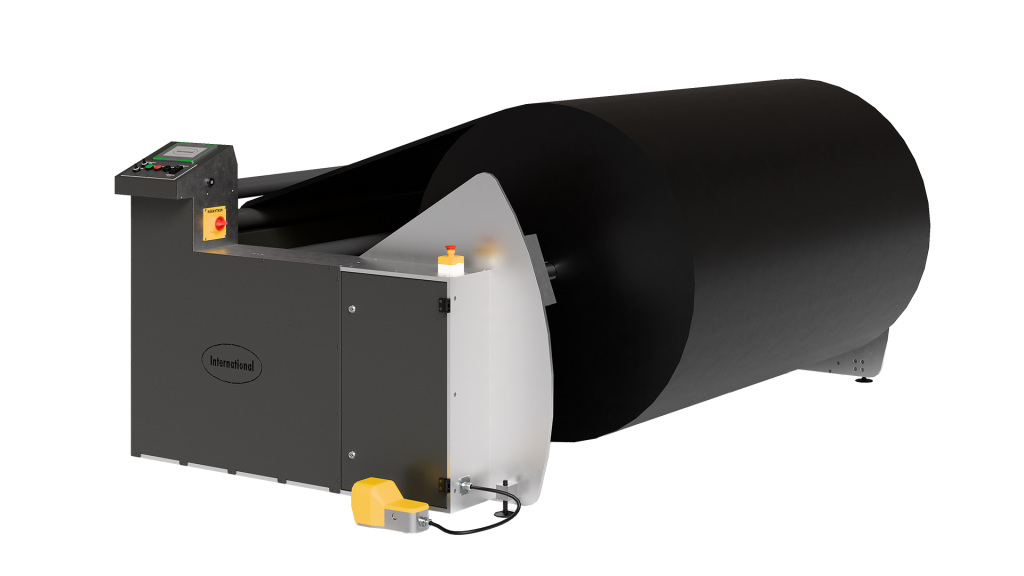

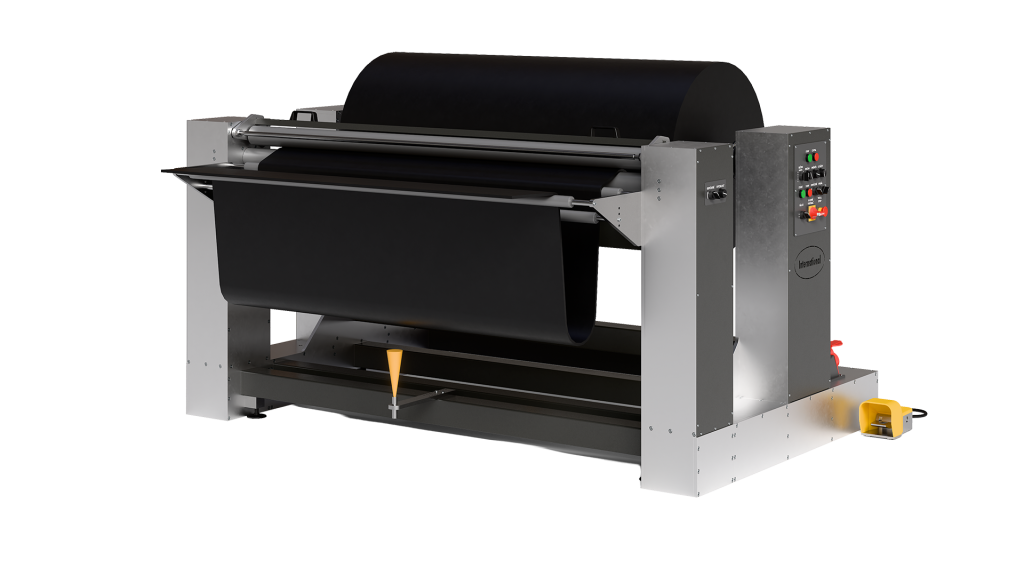

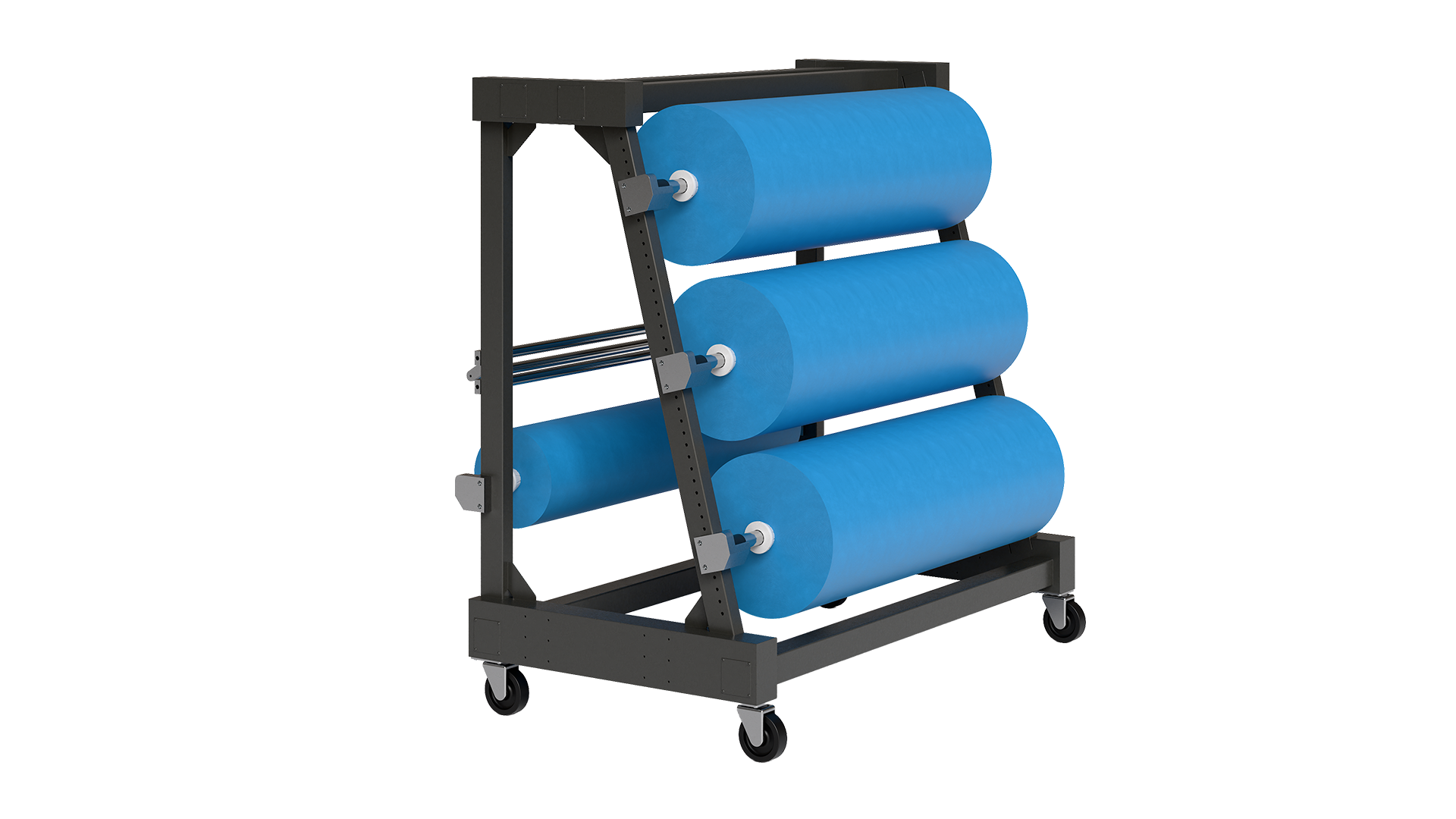

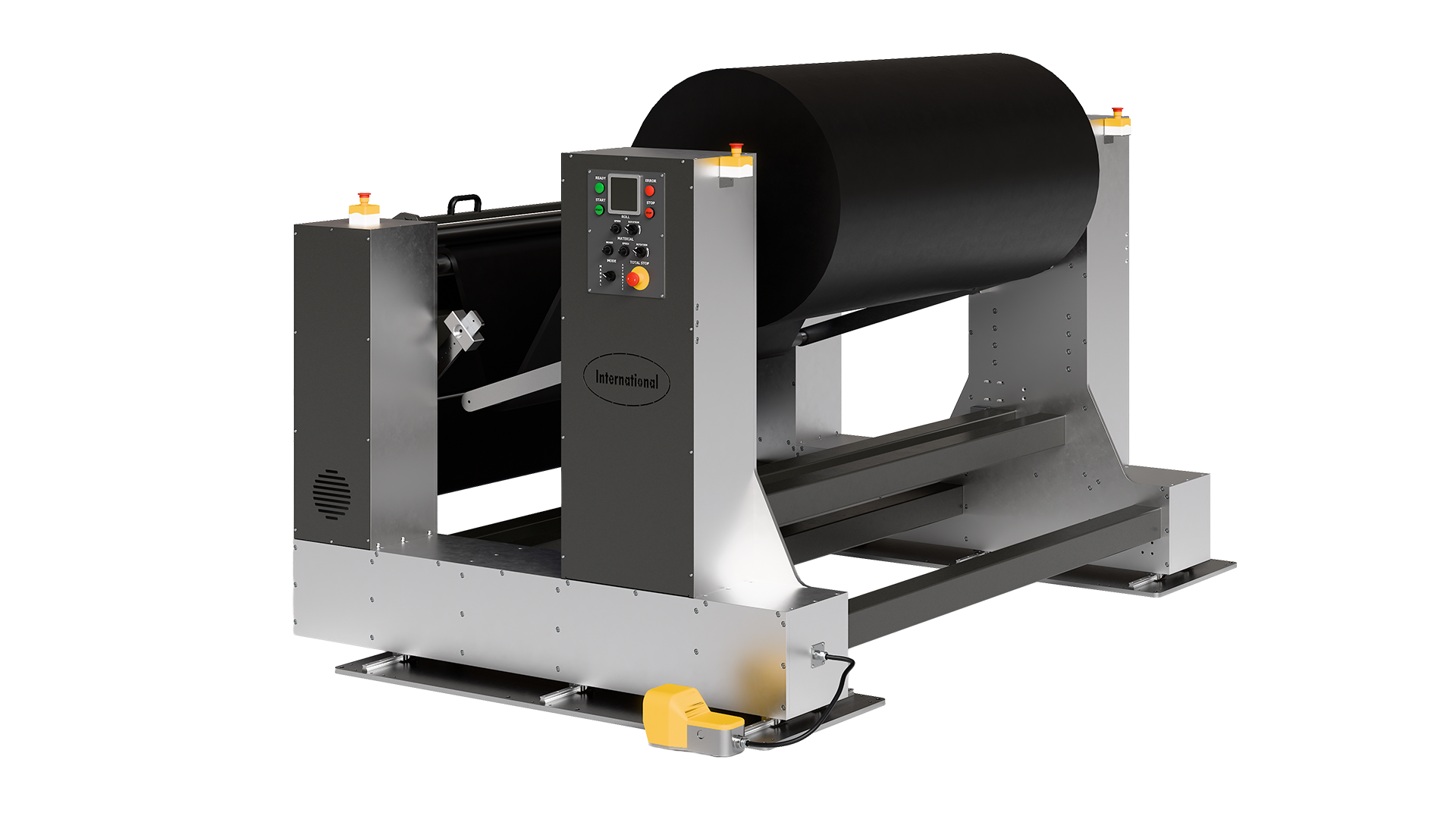

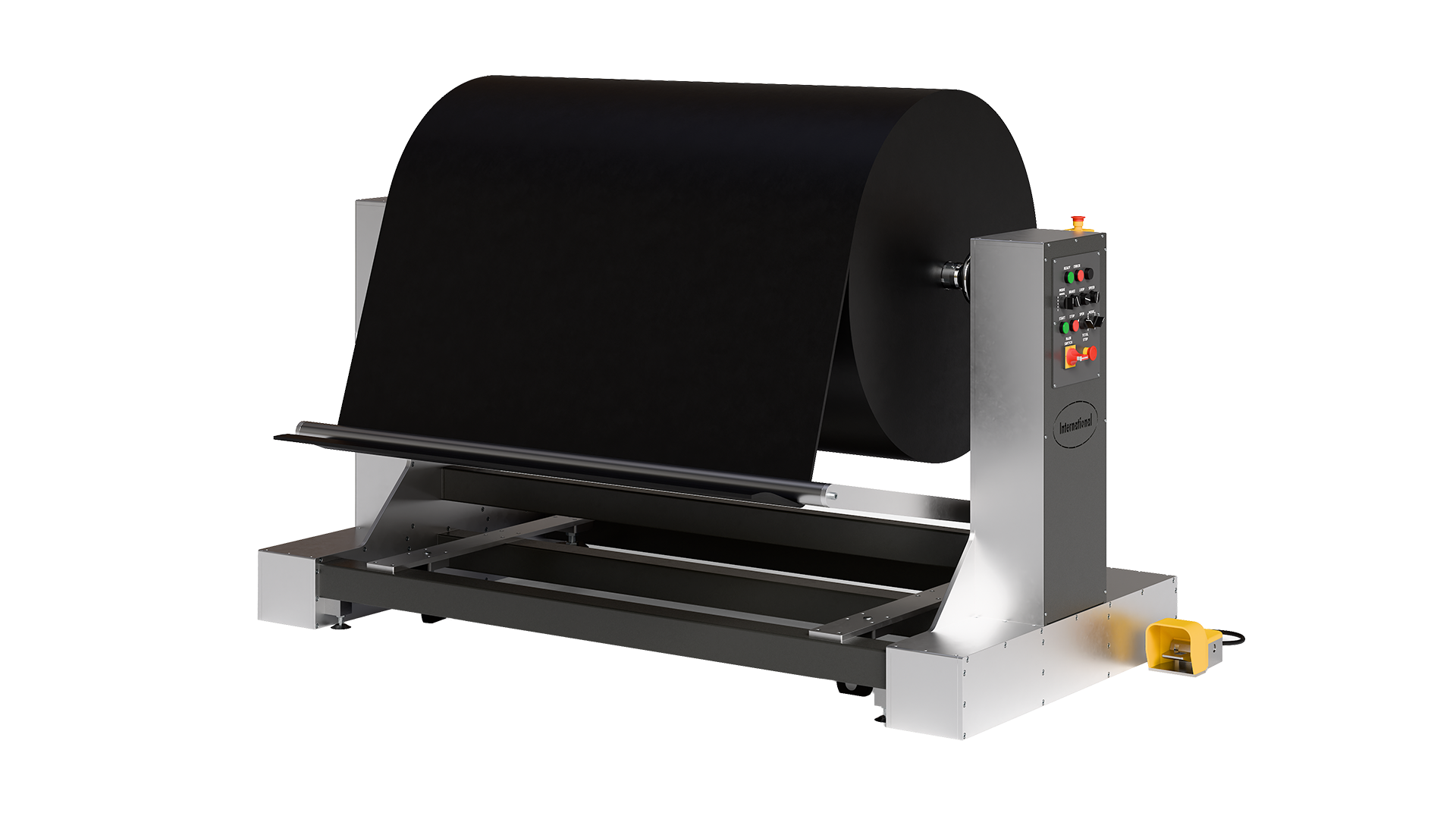

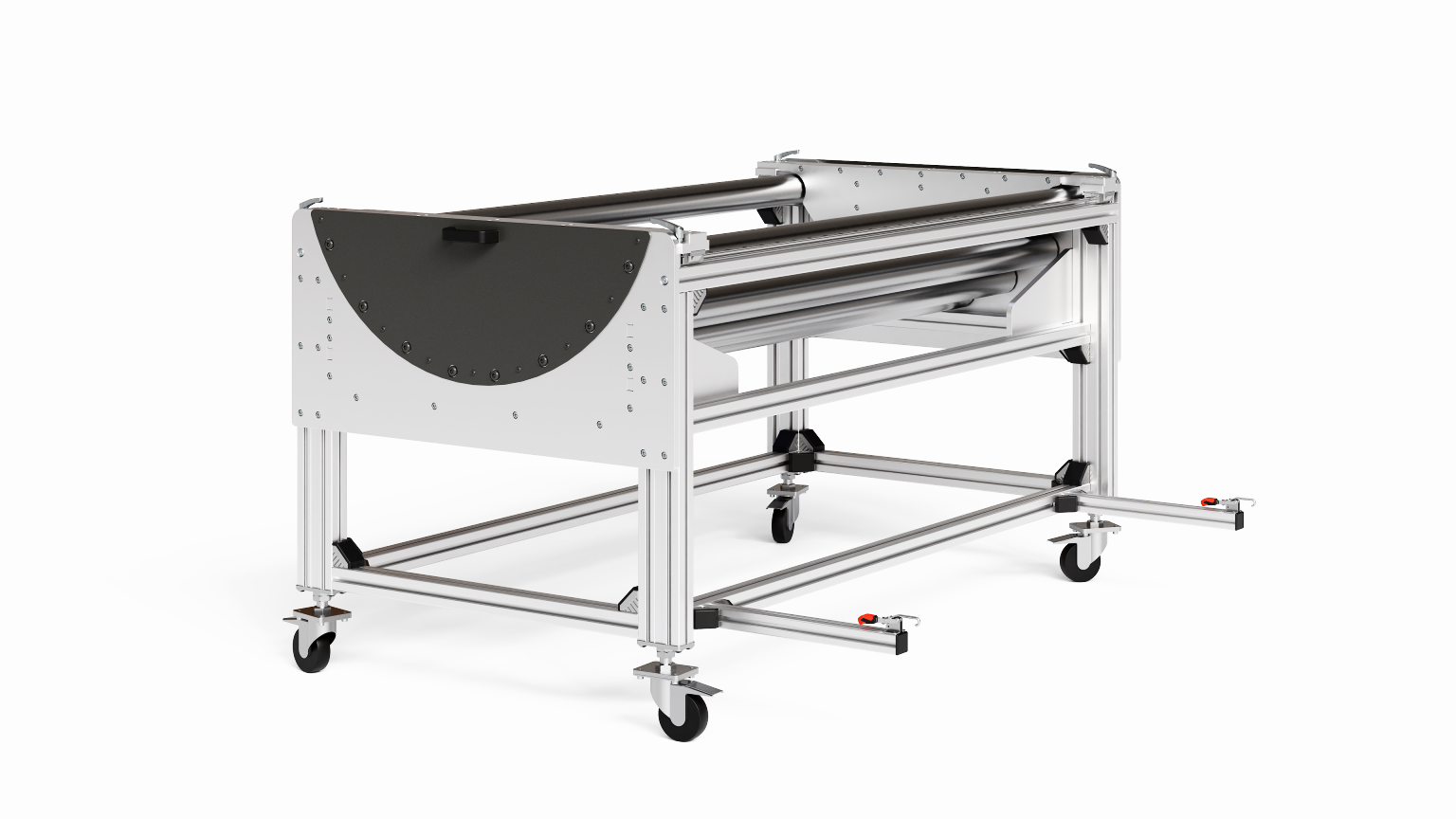

Standard & custom engineered material unwinds stands & winders, feeding and spreading machines, sheet-loaders, and in-line loading & off-loading tables.
