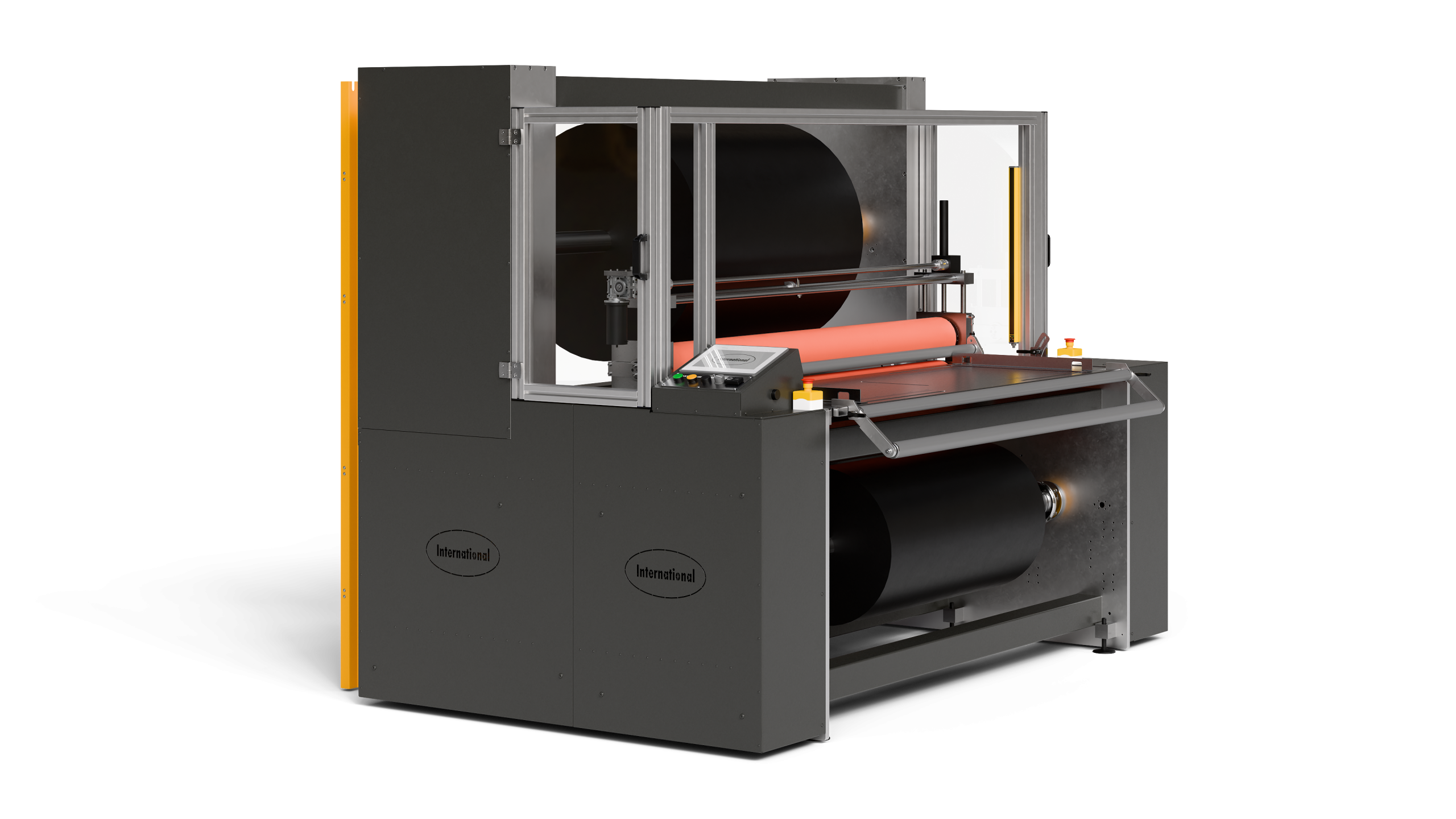

International ICZ 1600-Easy R Laminator
MAXIMAL WORKING WIDTH 1600 MM
Machines designed for lamination using heat-activated or cold adhesive materials up to a thickness of 55 mm and widths of 1300, 1600, and 2300 mm. The machines serve for laminating, rewinding. The machine is equipped with a foot switch, which facilitates work on the machine. The maximum processing speed of the material is 20 m/min. The machine is designed with the highest regard for operator safety, and all hazardous parts are covered during operation. The machines are manufactured with a modular structure and can be adjusted based on requirements of the customer.
Control System

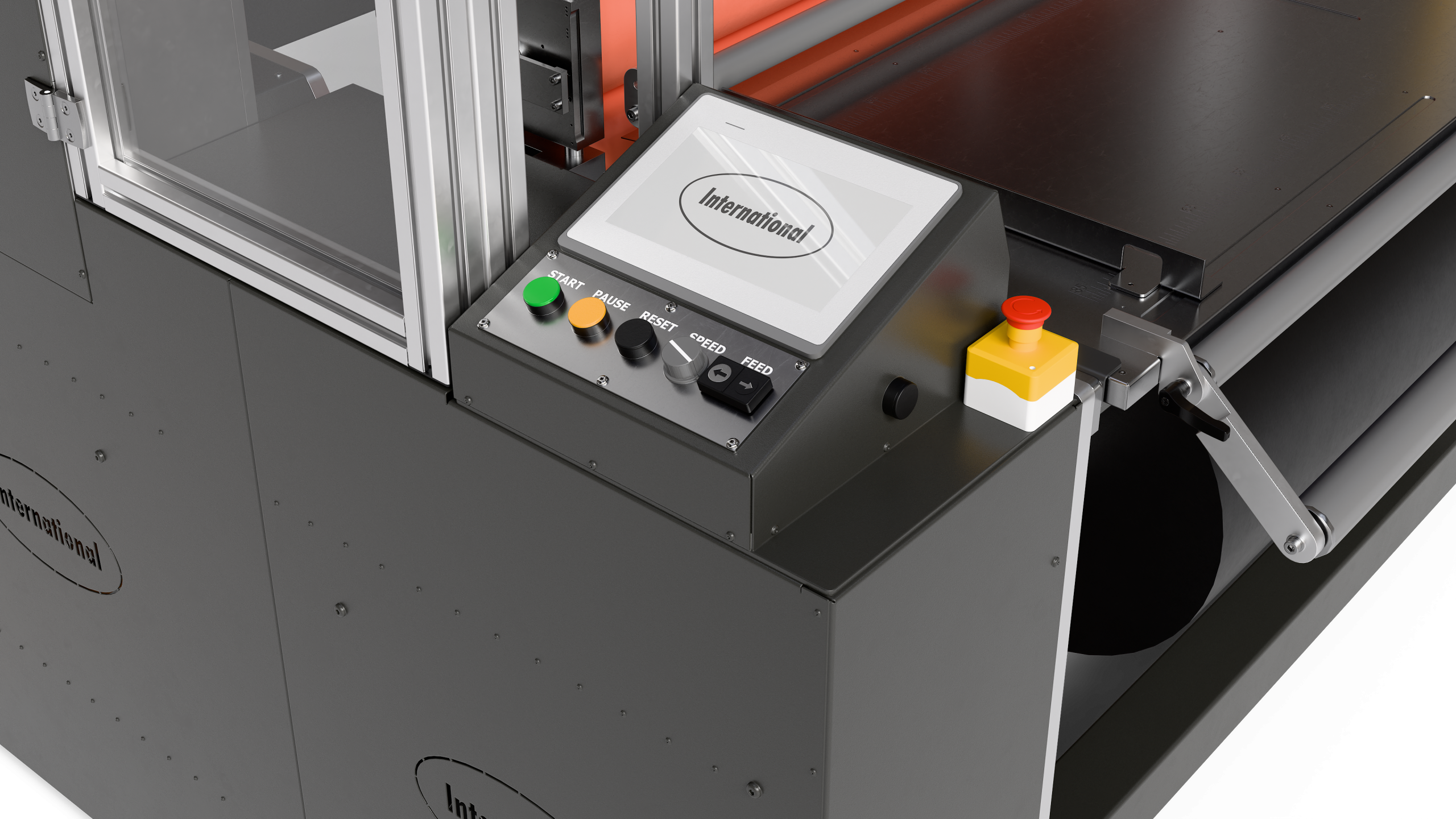

The ICZ 1600-EASY R features a modern and intuitive control system designed to maximize both productivity and operator safety. The machine is operated through a flat touch screen combined with analog buttons, providing a user-friendly interface for both new and experienced operators. It includes built-in safety mechanisms such as photocells and an emergency stop button to ensure safe operation at all times. All movement axes are servo-controlled, delivering high precision and responsive handling. The system supports pre-adjustable programs, allowing users to store and execute repeatable processes efficiently. For production tracking, the interface displays the processed meter count and piece count in real time. The machine is delivered with a manual in English and a Certificate of Conformity, ensuring compliance and ease of use right out of the box.
Technical Specifications
The ICZ 1600-EASY R is built for high-capacity, precision lamination, making it ideal for demanding industrial applications. It supports materials with a maximum working width of 1,600 mm (63"), and can process substrates up to a thickness of 55 mm (2.17"), accommodating a wide variety of materials including thick composites. The machine operates at a maximum lamination speed of 20 meters per minute (65 feet per minute), delivering both speed and consistency for large-scale production. It handles entrance rolls with a maximum diameter of 500 mm (19.7") and a weight capacity of up to 600 kg (1,323 lb), allowing for uninterrupted long runs. The roll width capacity is engineered to accept materials up to 1,600 mm (63") in width, ensuring compatibility with standard industrial formats. Additionally, the machine is equipped with a connector for an exit rewinder, enabling seamless downstream integration for further processing or roll collection.
virtual showroom
International ICZ 1600-EASY R Laminator
Machine Components
Entrance Table
Designed to guide material smoothly into the machine:
Ensures a consistent entry angle for proper alignment
Prevents wrinkling or rippling of material
Features a tiltable surface for greater versatility
Revolver Unwinder
Handles multiple rolls for efficient material feed:
Supports a maximum width of 1600 mm
Accepts rolls up to 350 mm in diameter and 200 kg in weight
Designed for 3-inch (76 mm) cores, interchangeable if needed
Allows loading of up to 4 rolls simultaneously
Features an electromagnetic brake adjustable from the control panel
Motorized movement of the revolver is also adjustable via control
Shafts can be quickly locked on both sides using a fast-locking system
Cradle Unwinder
Optimized for smooth unwinding of heavy rolls:
Compatible with material up to 1600 mm wide
Handles rolls up to 500 mm in diameter and 350 kg in weight
Equipped with guides for precise material alignment
Mounted on linear guides to enable easy repositioning of the unit
Lamination Unit
Delivers high-quality lamination under controlled conditions:
Equipped with upper and lower silicone-covered cylinders
Both cylinders include integrated heating elements
Temperature can be adjusted between room temp and 100 °C via control panel
Adjustable gap between cylinders ranging from 0.8 mm to 55 mm

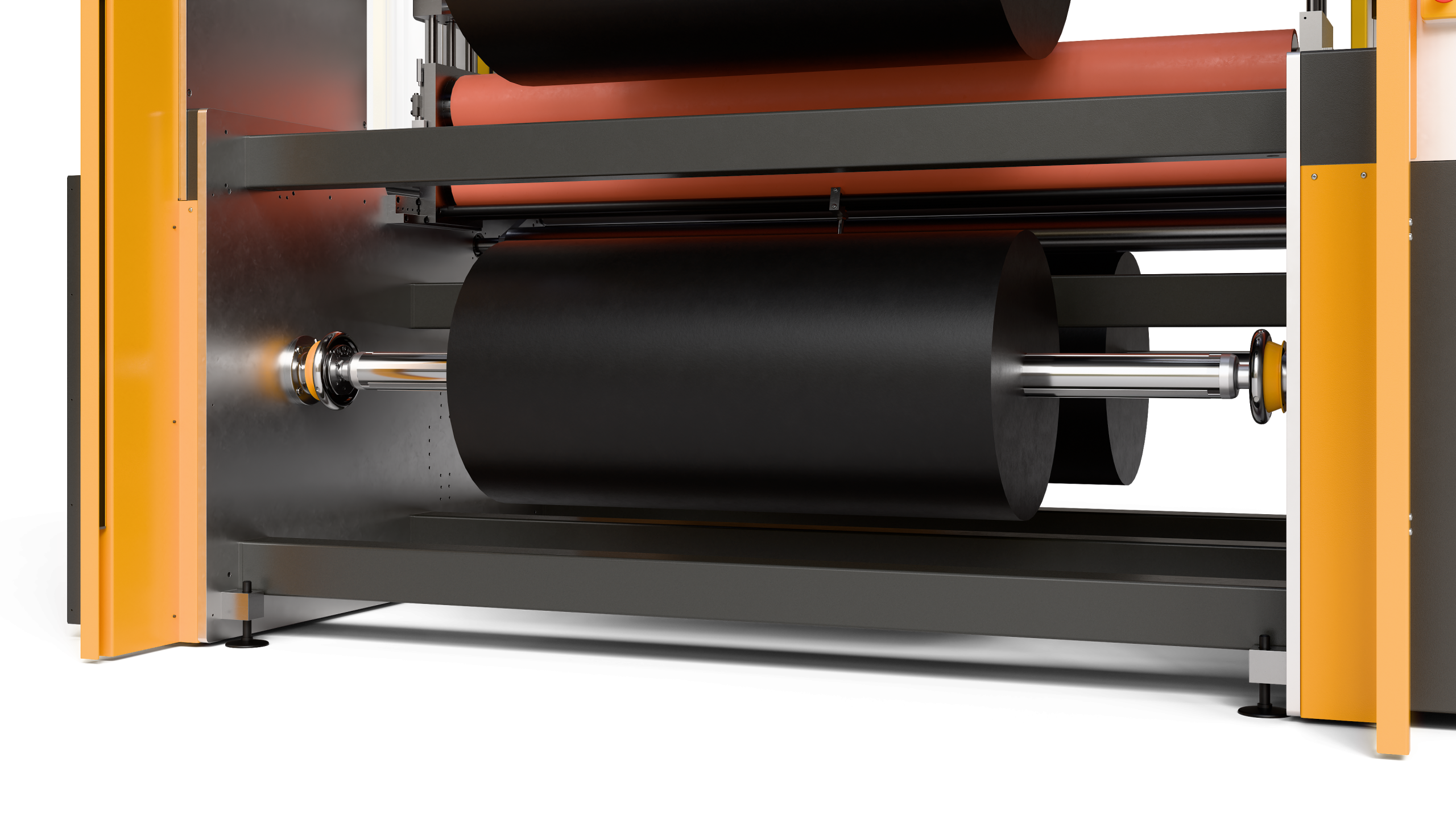

Lower Rewinder
Collects laminated material onto a roll efficiently:
Suitable for material up to 1600 mm in width
Handles rolls up to 600 mm in diameter and 100 kg in weight
Features motorized winding with adjustable speed and tension
Uses a 3” pneumatic expansion shaft
Material is secured using air-inflated shaft locking
Includes fast locking systems on both sides
Shaft has a ruler for precise alignment
Safety Features
The ICZ 1600-EASY R is built with a comprehensive range of safety mechanisms:
All hazardous parts are covered with protective enclosures
Microswitches monitor component positions
Optical safety barriers prevent accidental contact with moving parts
Every element is designed to minimize operational risks and protect the operator at all times
