Chiesa F1 Automatic Traveling Head Presses
The Chiesa F1 Automatic Traveling Head Press line is designed for high-speed, high-precision die cutting across demanding industrial applications. Available in multiple models, the F1 series can be configured with different platen sizes, cutting forces, belt widths, feeding systems, and automation options to support a wide range of production needs.
From standard CNC traveling head presses to larger hybrid models with heated platens, the F1 family delivers reliable performance, improved material yield, and flexible operation for gasket, abrasive, automotive, technical textile, and other industrial cutting applications.

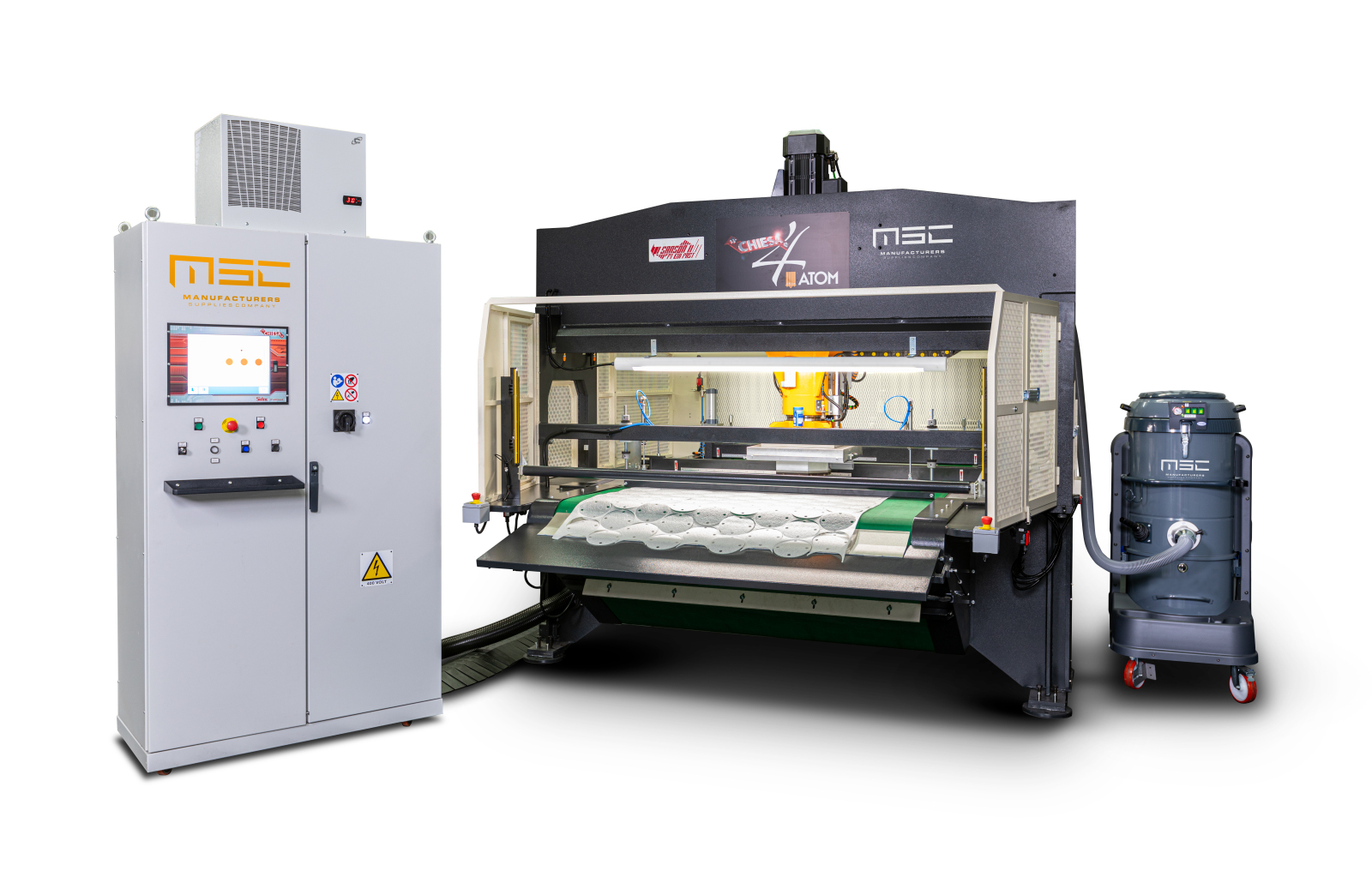

Chiesa F1 EDI CNC Traveling Head Press
The Chiesa F1 EDI CNC Traveling Head Press combines advanced servo-driven technology with a robust mechanical design to deliver high-speed, high-precision die cutting for demanding industrial applications. Capable of speeds beyond 80 punches per minute and cutting forces up to 110 tons, the system maximizes material yield while efficiently processing thick, hard, and abrasive materials in single or multiple layers.
Key Features
- Electrically servo-driven cutting head
- No hydraulic system – reduced maintenance
- Up to 50% reduced power consumption
- Improved accuracy and repeatability
- Cutting speeds beyond 80 punches per minute
- Automatic tool changing device with 4, 7, or 14 positions
- Advanced nesting software for improved material yield
- Cutting platen dimensions from 350mm up to 1500mm
- Cutting power from 25 tons up to 110 tons
- Suitable for single or multiple layer cutting
- Compatible with multiple die configurations

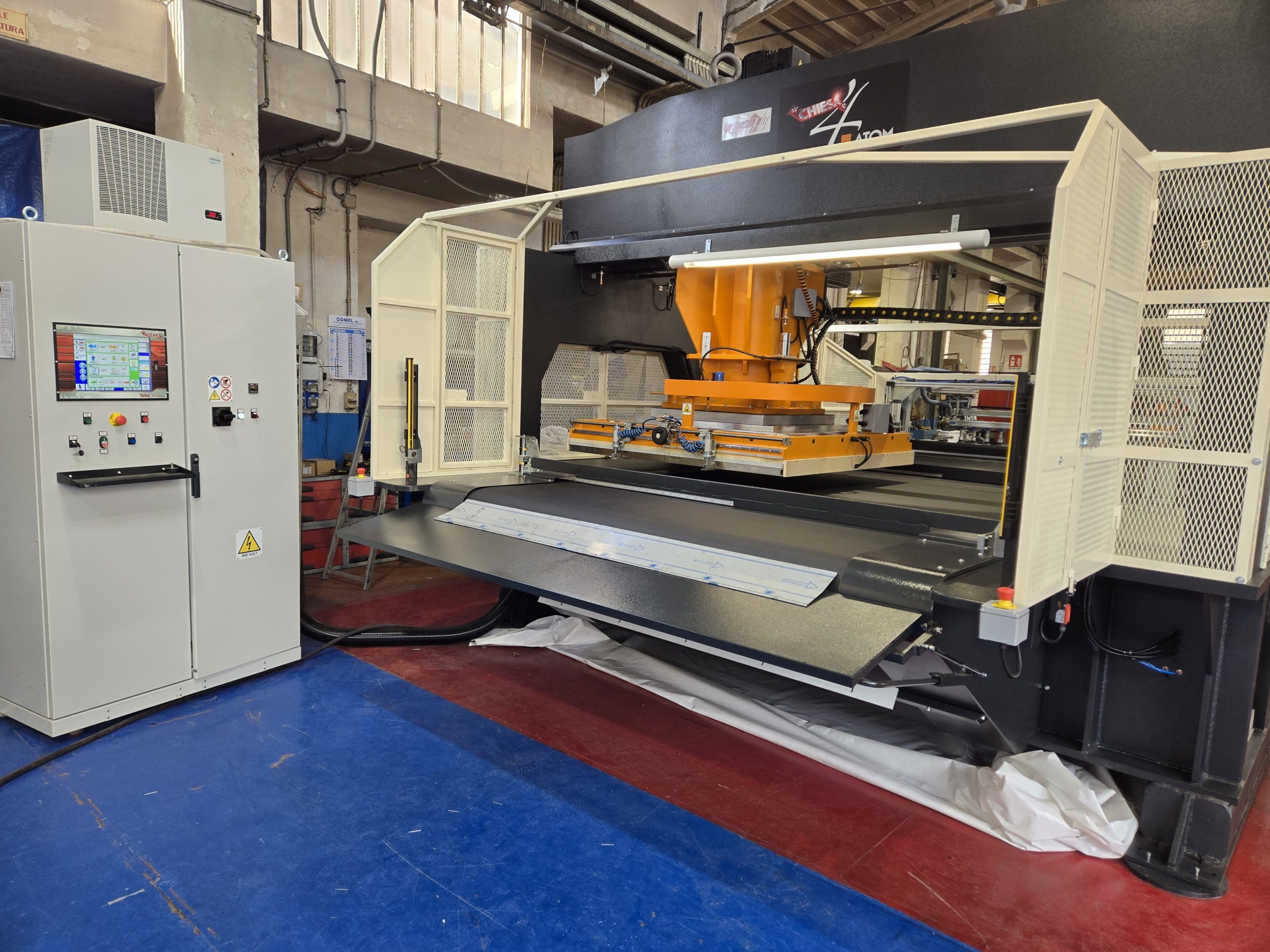

Chiesa F1 100-EDI-1500-H Automatic Traveling Head Press
The Chiesa F1 100-EDI-1500-H is a high-performance automatic traveling head press designed for large-format die cutting and cut-and-seal applications. Featuring 110 tons of cutting force, a massive 1500mm x 1500mm rotating carriage, and a unique hybrid design, the system can operate as either a traveling head or fixed head press for maximum production flexibility and efficiency.
Key Features
- 110 tons of cutting force
- 1500mm x 1500mm rotating carriage
- Heated platen up to 200°C
- Hybrid operation: traveling head or fixed head press
- Working widths from 1600mm to 2200mm
- Automatic pad shifter for nylon or steel base
- Motorized die clamps for faster setup changes
- Single cavity tooling improves material utilization
- Reduced tooling costs and setup times
- Designed for demanding industrial production environments
These die cutting systems are extremely efficient. The robust structure and the quality of mechanical components allow cutting speeds beyond 100 punches per minute, with a precision of a few hundredth of a millimeter, which allows parts to be kept as close as possible, increasing the material savings & cutting belt life.
The cutting power, up to 110 tons, is kept steady even for extremely long production runs allowing these machines to cut hard materials of high thickness, in single or multiple layers, and use multiple dies or dies with long blade development. Wide variety of modular feeding systems available for both roll & sheets in single and multiple layers:
Cutting Belt & Feeding Clamps
Suitable to cut any type of synthetic material both in rolls and sheets, loaded both from the front or back of die cutting press; the material is moved and fixed by three independent clamps. One clamp is mobile and supports the belt in the movement of the material to grant the maximum positioning of the material(s) even for soft, elastic products, cut in single or multiple ply.
Mobile Cutting Pad & Clamps
Suitable to cut sheeted goods only, both in single & multiple layers. The sheets are loaded onto a polypropylene cutting pad with automatic movement and equipped with special clamps. The clamps allow the cutting of multiple layers without stapling.
Automatic Sheet Feeding
The material is loaded onto a hydraulic platform, both in single or stapled multiple layers. A special vacuum suction cup device grips the material and positions it onto the back of the machine. The feeding system will automatically stop the machine when there is no longer material available. The sheet feed system is available on all models equipped with the cutting belt & clamps. The system can also be equipped with an automatic part unloading device.
The advanced nesting software allows to calculate, with considerable precision, for each material consumption and time required (thus labor cost) in order to make accurate simulations of the cutting cost, enabling better production planning and more precise offers to customers.
