ATOM FlashCut TWINS Series The ATOM FlashCut TWINS is equipped with a modular head and two independent vertical axes slots which allows for sequential working, matching a wide range of cutting, creasing, marking & punching tools capable of processing materials up to 50mm in thickness – cutting solutions for combined jobs. Learn More ATOM FlashCut TWINS EMH Series The ATOM FlashCut TWINS EMH (Electric Milling Head) allows to sequentially or separately use the cutting knife or router and is the ideal solution for processing foams or rigid materials and is equipped with an air cooling system and dust extraction device with electric height regulation. Learn More

ATOM FlashCut TWINS Series

ATOM FLASHCUT TWINS EMH
SERIES

ATOM FLASHCUT
TWINS SERIES

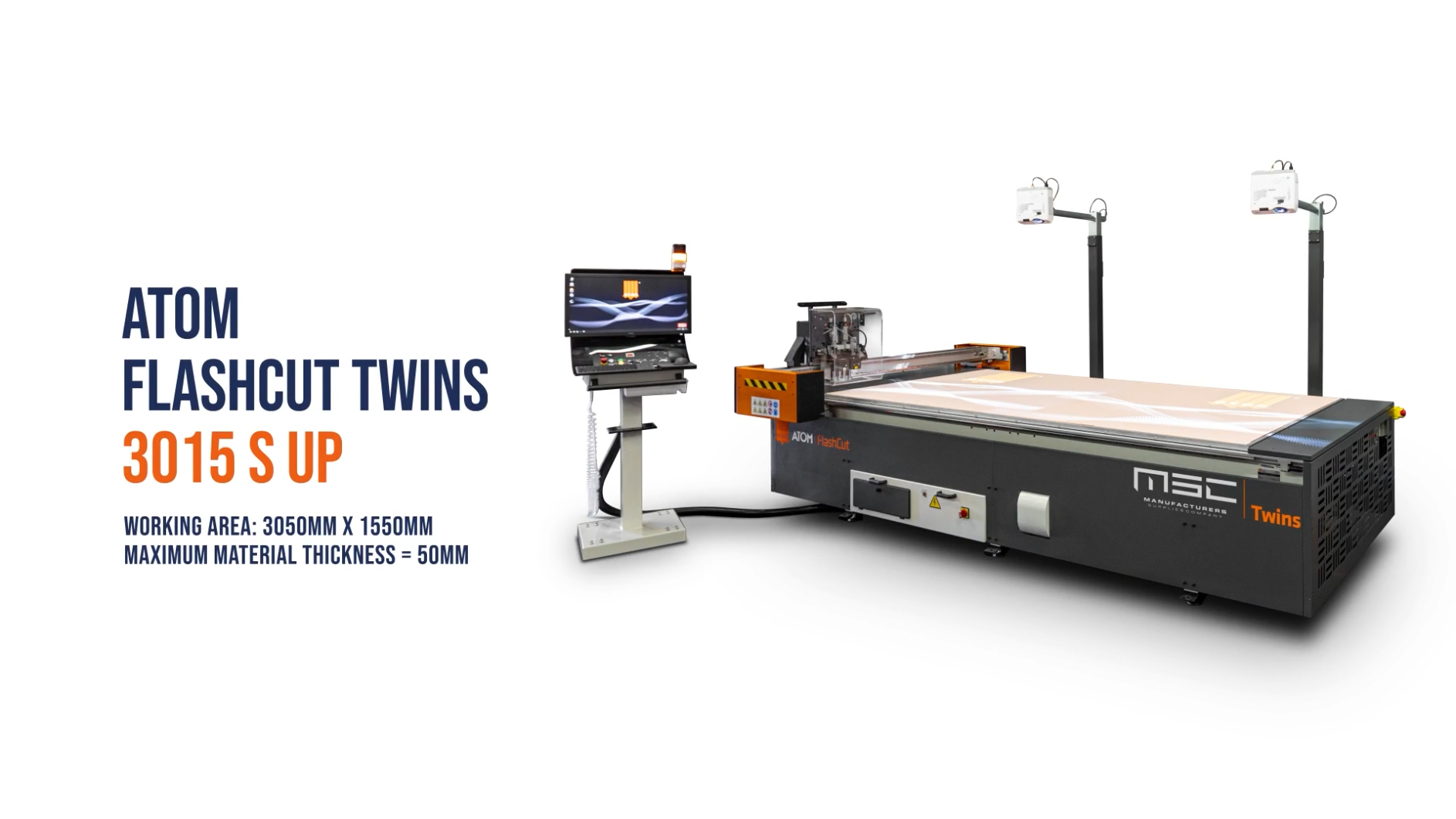

ATOM Dieless Knife Cutting Tables & Systems, FlashCut TWINS Series, is a complete line of digital dieless cutting systems available in several configurations with either a static or conveyorized (belt feed) cutting surface capable of processing materials up to 50mm in thickness – cutting solutions for combined jobs.  Following several successful installations of the popular FLEX series, which brought us great experience in various production fields and processes, have considerably influenced the new TWINS design. The robust structure and state-of-the-art electronics allowed us to develop a modular cutting head, with two main tools & additional optional devices including a high-resolution ink-jet printer and camera to automatically acquire the shape reference points. The data related to the modules settings can be automatically stored and reused to quicken the tool change operations with a considerable labor cost savings & remarkable cutting quality.

ATOM’s automated cutting systems cut with extreme precision and repeatability, to within +/- 0.1mm on most materials.  Advanced nesting software packages maximize yields and significantly reduce expensive material waste.  Engineered and designed to cut the hardest materials like compressed non asbestos, steel inserted graphite, hard rubber, cross-linked PE foams, Kevlar & carbon fiber, plastics, and many more. Materials widely used in the automotive, aerospace, composite, electronics, medical, petro-chemical, & packaging industries.  Since ATOM develops its technology in close collaboration with its clients, today it is able to offer the most advanced and most applicable cutting solution on the market – the new FlashCut ‘TWINS’.

Download Brochure

Thumbnail-TWINS-Modular-Tool-Head

FlashCut TWINS Series

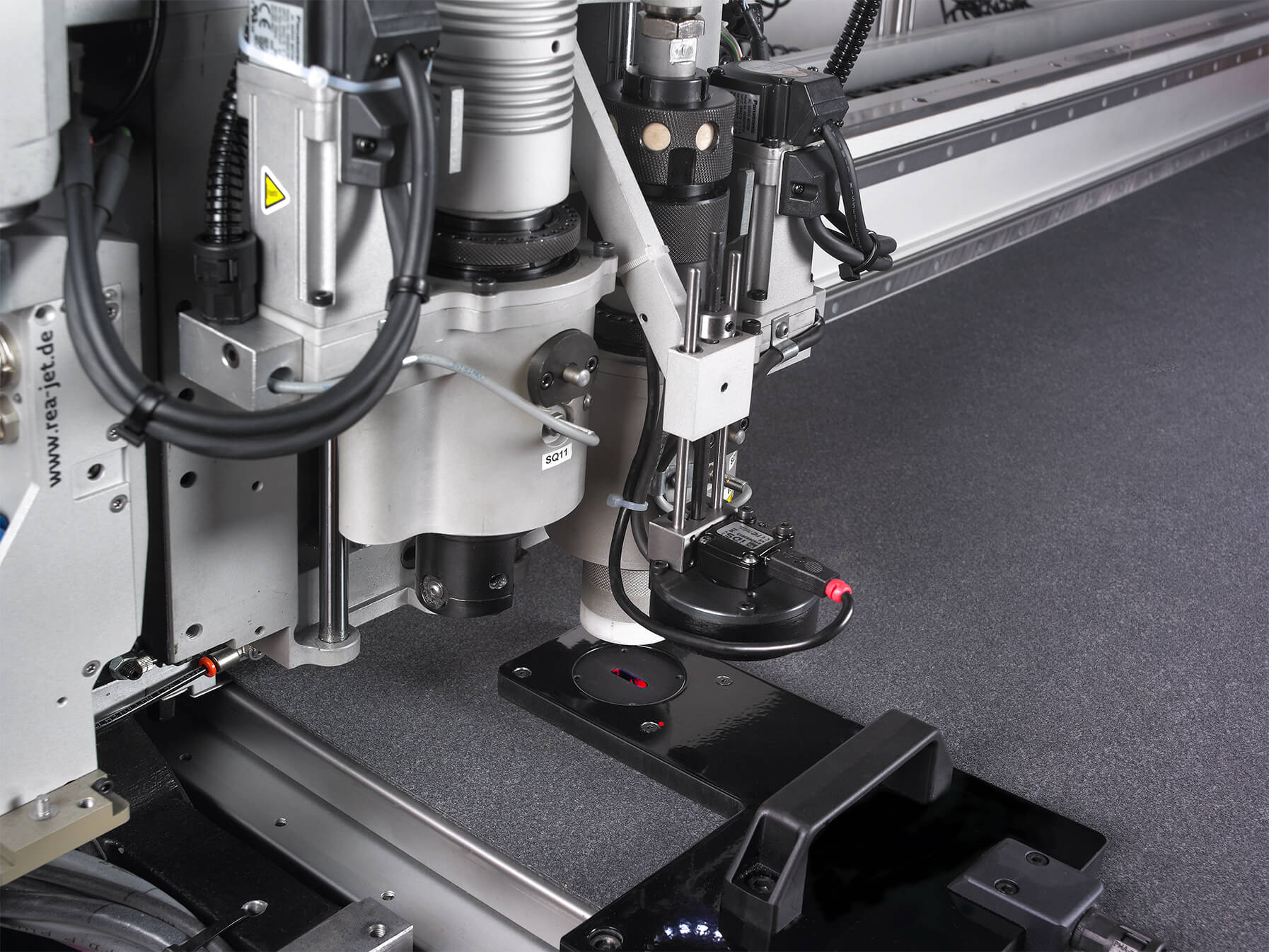

The standard TWINS series is equipped with a modular head and two independent vertical axes slots which allows for sequential working, matching a wide range of cutting, creasing, marking & punching tools. It is possible to perform different jobs using the most suitable tool for every specific requirement on the same shape. In the same cutting session it is also possible to use the ink-jet printer & the camera to acquire the cutting fiducial reference points.

Thumbnail-TWINS-EMH-Modular-head

FlashCut TWINS EMH Series

The EMH (Electric Milling Head) allows to sequentially or separately using the cutting knife & the router. It is the ideal solution to combine the process of foam or rigid materials as well a vast number of other materials with a single tool. Two different types of routers are available, with a power of 1 or 2.4 kW, air cooling system, variation of the speed rate during the milling & a vacuum cleaning system (dust extraction device) with electric height regulation.

+PLUS | FlashCut Twins

ATOM-Easy-Partioned-Vacuum-System

Partitioned Vacuum Head

Powerful, partitioned and adjustable vacuum system. Best fixing during cutting and highest energy saving.

ATOM-Speedy-Pinch-Grab

Life Long Projectors

Optimal vision thanks to LED lamps. Low maintenance and long life.

ATOM-Speedy-Two-Cutting-Heads

Reference Points Acquisition Through Camera

Digital camera equipped with LED illuminator that allows to accurately place the shapes and the cutting layout with reference to the images printed on material.

ATOM-Flex-Optimized-Nesting

Optimized Nesting

Customized automatic nesting system. User friendly interface. Reduction of the process times and maximum material yield.

ATOM-Speedy-Picking-Assistance

Feeding Systems

Optional tools as loading tables and take-off tables, self-centering cradle unwinding systems, with expanding shaft or multiple rolls, automatic spreaders, really helpful when cutting textile in multiple layers.

ATOM-Speedy-High-Cutting-Accuracy

Inkjet Printer

A high resolution inkjet printer is available. The use of cartridges cut maintenance costs and allows to quickly change both colors and ink type.

ATOM-Speedy-Acquisition-Systems

Static or Conveyorized Feeding Belt Cutting Surface

On the conveyorized models, the material feeding is carried out by the combined action of the belt and a pincer mounted on the gantry.
